Eco Cooling Small Industrial Water Chiller , Portable Water Chiller Box
| Place of Origin: | DongGuan, GuangDong |
| Brand Name: | HIGOLDEN |
| Certification: | CE |
| Model Number: | HLLA~05SI |
| Minimum Order Quantity: | 1 Unit |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15~25 days |
| Payment Terms: | T/T, Western Union, L/C, MoneyGram |
| Supply Ability: | 20 Units per Month |
|
Detail Information |
|||
Product Description
Blue Box Industrial Water Chiller , Air Cooled Portable Water Chiller
Production Description:
- Cooling Capacity: 14.9KW ( 12.8×1000 kcal/h );
- Refrigerant: R22 / R407C / R134A;
- Chilled Water Temperature: From 5℃ to 20℃;
- Industry Use: Molding / Plastic / Injection etc.
- Designed with imported compressor(Copeland Brand) and multi-refrigeration circuits.
- Compressors: 1~3 compressors design to save energy and power.
- Open-type stainless steel water tank, easy and fast to clean and maintain.
- Well-structured safety protection and trouble indication system.
Product Function:
- The water chiller could be used in many places and industries just like Molding / Plastic / Injection equipmentetc industries.
- Chilled Water Temperature: From 5℃ to 20℃;.
- Brand of Compressor: Standard unit is Copeland, you could choose other brands just like Danfoss, Bitzer, Dakin etc.
- Safety protection: Just like showed in the form.
Product Detail:
|
Model HLLA ～ |
05SI |
|
|
Rated Cooling Capacity |
×1000 kcal/h |
12.8 |
|
|
KW |
14.9 |
|
Input Power (KW) |
5.55 |
|
|
Comp. Input Power×Qty. (KW) |
4.3 |
|
|
Chillded Water Pump Model |
HT1.0DK-20 |
|
|
Chilled Water Pump Power (KW) |
0.75 |
|
|
Comp. Current (A) |
10.5 |
|
|
Power Supply |
3φ-380V-50HZ |
|
|
Safety Protection |
Phase reversion protection, Phase lack protection, Overload current protection, Low & High pressure protection, Low temp. protection, Water flow protection, |
|
|
Number of Refrigeration Circuit |
1 |
|
|
Capacity Control (%) |
0, 100 |
|
|
Refrigerant |
R22 |
|
|
Condenser |
Ripple Aluminum Fins around Cooper Pipe |
|
|
Power lnput of Fan (KW) |
0.5 |
|
|
Evaporator |
Pipe Coil Type |
|
|
Water Side Max Pressure (MPa) |
- |
|
|
Dia.of Pipe to Evaporator (inch) |
1" |
|
|
Chilled Water Flow (L/m) |
42.7 |
|
|
Evaporator Water Pressure drop (kPa) |
- |
|
|
Running Noise dB(A) |
72 |
|
|
Tank Volume (L) |
80 |
|
|
Total weight (Kg) |
170 |
|
|
Dimension L×W×H |
1000×650×1500 |
|

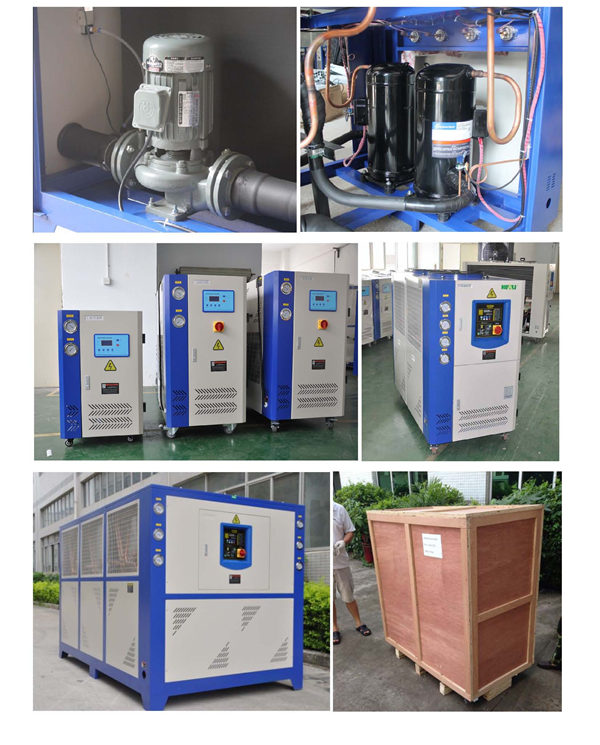

Product Show:
