Detail Information |
|||
| Place of Origin | Shenzhen, China | Brand Name | GOLDEN |
|---|---|---|---|
| Certification | CE | Model Number | HLLW~03SPI |
| Function: | Industry Cooling | Cooling Capacity: | 10.2KW |
| Input Power: | 2.85KW | Compressor: | 1 Pc |
| Comp. Current: | 5.3 A | Power Supply: | 380~400V/3PH/50HZ |
| Circuit Number: | 1 | Water Tank: | 80 L |
| Water Pump: | 0.75 KW | Type: | Water Cooled Chiller |
| Protection: | Low Temp. Protection | Noise: | 54 Db(A) |
| Total Weight: | 120KG | Dimension: | 850*550*1050mm |
| High Light: | Water Cooler Chiller,Water To Water Chiller |
||
Packaged type Industrial Water Chiller Machine , Shell And Tube Type
Product Description:
1. Cooling Capacity: 10.2~156.0KW
2. Chilled Water Range: 5～20℃;
3. Condenser: Shell and tube type.
Evaporator: Shell and tube type.
The heat exchanger units are used in efficient heat transfer tubes,the host selection of imported and
efficient hermetic scroll compressor(Copeland), has a compact structure, small size, light weight,
small installation location, and many other advantages.
4. Microcomputer program controller: Pump Brand.
5. Refrigerant: R22, R407C, R410A, R134A etc.
6. Chilled water flow:29.2~447.1 (L/m).
7. Tank Volume:80~270L.
8. Safe Protection: Phase reversion protection, Phase lack protection, Overload current protection,
Discharge air temp. protection, Low & High pressure protection, Low temp. protection, Water flow
protection etc.
9. High efficient compared to air cooled system chillers.
After-sale Service:
Product Detail:
|
Model HLLW ～ |
03SPI |
|
|
Rated Cooling Capacity |
×1000 kcal/h |
8.8~134.1 |
|
|
KW |
10.2~156.0 |
|
Input Power (KW) |
2.85~32.8 |
|
|
Comp. Input Power×Qty. (KW) |
2.1~10.2*3 |
|
|
Chilled Water Pump Power (KW) |
0.75·2.2 |
|
|
Comp. Current (A) |
5.3~64.2 |
|
|
Power Supply |
3φ-380V-50HZ |
|
|
Safety Protection |
Phase reversion protection, Phase lack protection, Overload current protection, Low & High pressure protection, Low temp. protection, Water flow protection, |
|
|
Number of Refrigeration Circuit |
1~3 |
|
|
Capacity Control (%) |
0, 100~0, 33, 66, 100 |
|
|
Refrigerant |
R22 |
|

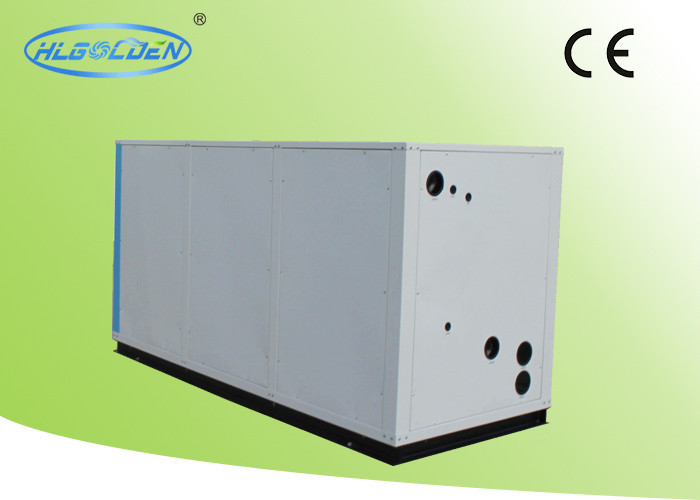

Product Show:
