35 Degree Industrial Water Chiller With CE / ROHS Certificate

Product Details
Place of Origin: China
Brand Name: Aode
Certification: ISO,CE
Model Number: AC-190WS
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Packaging Details: Protective/air bubble film, Wooden case. As client’s requirement.
Delivery Time: Within 20days after receiving deposit
Payment Terms: 30% T/T in advance, 70% balance before we delivery
Supply Ability: 500pcs/month

Detail Information

Place of Origin China Brand Name Aode
Certification ISO,CE Model Number AC-190WS
Nickname: Commercial Water Chillers Mode Number: AC-190WS
Power Input: 56KW Certification: CE & ISO
Refrigerating Capacity: 219300Kcal/h Compressor Type: Semi-enclosed Screw-type
High Light:

portable water chillers

,

water cooled water chiller

Product Description

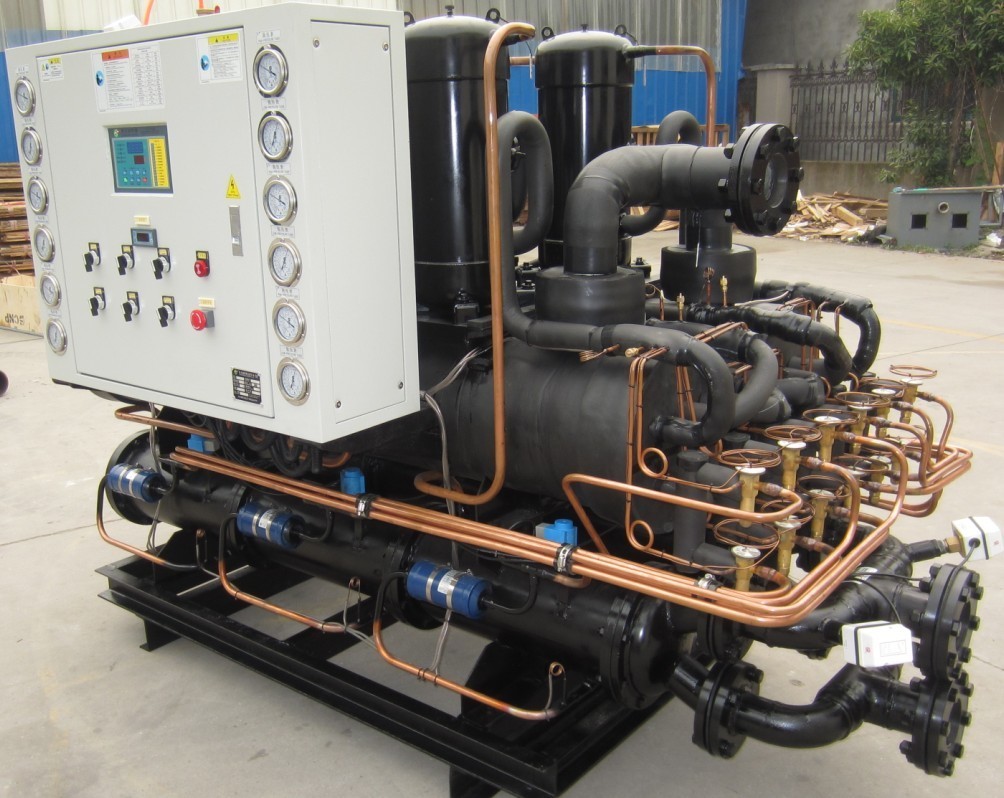

35 Degree Industrial Water Chiller With CE / ROHS Certificate





Quick Detail:



1. Power input:56KW

2. Temperature controlled 7-35℃, precision controlled ±2℃

3. Certification:CE & ISO

4. Compressor type: Semi-enclosed screw-type

5. Refrigerating capacity: 219300Kcal/h

6. Warranty:1 year





Description:



  • Compressor high and low voltage protection, internal overheating protection

  • Low water flow alarm devices: Low water temperature anti-icing alarm

  • Compressor imported from Europe, America and Japan(Hanbell Levin Beverly)

  • Oxygen-free welding from refrigeration system, reduce the oxides and smooth the surface

  • Denmark Danfoss and USA Eco throttle components

  • Denmark Danfoss solenoid valve filter

  • Stainless steel plate, coil type, shell and tube, finned high efficiency heat exchanger

  • RS485 communication function for automated management(optional)

  • Brands OMRON, FUJI, TE, LG, MOELLER, ABB and WEST for electric appliances

  • Control mode: imported microcomputer or PLC(optional)

  • Perfect safety protection, fault display, easy repair and maintenance even without professionals

  • High-efficiency evaporator and condenser which can save energy by more than 30%

  • Temperature control range:7-35℃, Temperature control accuracy:±2℃





Specifications:



ITEM

UNIT

AC-190WS

Refrigerating capacity

Kcal/h

163400



KW

190

Input water

KW

45

Maximum Running Current

A

76

Energy adjust range

%

100-75-50-25-0

Power supply



3N-50HZ-380V

R22 Refrigerant

Filling Volume

kg

35



Control mode



Thermostatic External pressure expansion valve

Compressor

Model



Semi-enclosed screw-type



Power

Kw

45

Evaporator

Model



Shell and Tube



Chilled water flow

M3/h

36.6



Water resistance

Kpa

42



Water inlet/outlet diameter

DN

80.0

Condenser

Model



Shell and Tube



Chilled water flow

M3/h

46.1



Water resistance

Kpa

                     48



Water inlet/outlet diameter

DN

80.0

Protecting equipment



Over/low voltage switch, antifreeze switch, safety valve, overload protection devices, coil overheating protector, temperature automatically switch, reverse phase protector

Size(L×W×H)

mm

2800×750×1800

Weight

kg

1000

Running Weight

Kg

1200





Competitive Advantage:



  1. Our core competitiveness:advance technology,the pioneer of TCU industry, Convenient and efficient nationwide service network

  2. Excellent R&D team

  3. Customization thick copper pipe 1.0-1.2

  4. Our core concept:Innovation, high-quality, integrity, service, focus

  5. High density heat insulation cotton and aluminum foil

  6. Electric appliances brands:OMRON, JUJI, TE.LG, MOLLER, ABB and WEST

  7. The thickness of our machine rack is 1.2mm

  8. We have the production certification organic heat transfer material heater





Applications:



Aluminium Alloy: Car accessories

Magnesium alloy: Communication device, navigation

Hot Rolling Machine: Calender Rolls, Wood Presses, Laminating Presses,Molding Presses, Rubber Presses, Jacketed Vessels, Reactors, Heat Exchangers, Mixers, Printing Machines, Asphalt, Vulcanizing Presses.
Die casting,plastic  Injection molding, light guide plates, connectors, Chemical engineering, Shoe materials, Pringting and dyeing, Drying and banburying.



35 Degree Industrial Water Chiller With CE / ROHS Certificate 0



35 Degree Industrial Water Chiller With CE / ROHS Certificate 1





35 Degree Industrial Water Chiller With CE / ROHS Certificate 2





35 Degree Industrial Water Chiller With CE / ROHS Certificate 3





Nowadays, Aode Machinery Co.,ltd continue to uphold the purpose of international standards designs and high quality products, applying ourselves to providing high standard products and whole-journey nanny service. Our products are widely applied in plastic injection molding, light guide plates, connectors, chemical engineering, compression casting, reaction kettles, rubber tires, calendaring, shoe materials, printing and dyeing, drying and banburying and tec. And widely sold to Japan, America, Italy, Brazil, Southeast Asia, Africa and etc. The brand recognition from the market is sufficient to prove that our temp. control system can replace the imported similar products. Belows are our honor clients.
