Home > Products > Industrial Water Chiller > Low-temp Industrial Water Chiller

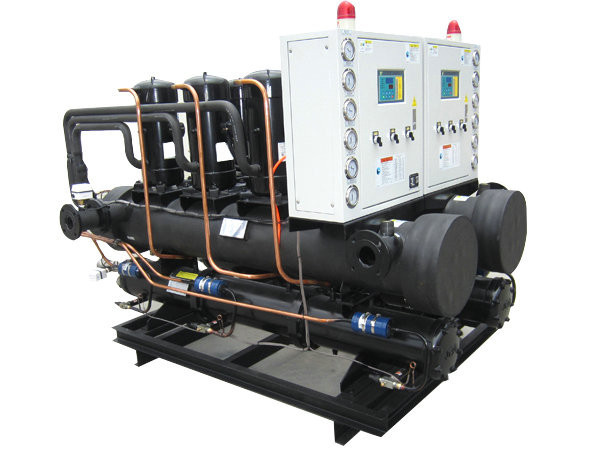

Low-temp Industrial Water Chiller

Product Details

Place of Origin: China

Brand Name: Aode

Certification: ISO,CE

Model Number: AC-400WS

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Packaging Details: Protective/air bubble film, Wooden case. As client’s requirement.

Delivery Time: Within 20days after receiving deposit

Payment Terms: 30% T/T in advance, 70% balance before we delivery

Supply Ability: 500pcs/month

Get Best Price
Highlight:

water cooling chiller

,

water cooled water chiller

Nickname:
Commercial Water Chillers
Power Input:
85KW
Power Supply:
3N-50HZ-380V
Refrigerating Capacity:
344000Kcal/h
Certification:
CE & ISO
Compressor Type:
Semi-enclosed Screw-type
Nickname:
Commercial Water Chillers
Power Input:
85KW
Power Supply:
3N-50HZ-380V
Refrigerating Capacity:
344000Kcal/h
Certification:
CE & ISO
Compressor Type:
Semi-enclosed Screw-type
Low-temp Industrial Water Chiller



Low-temp Industrial Water Chiller





Quick Detail:



1. Power input:85KW

2. Temperature controlled 7-35℃, precision controlled ±2℃

3. Certification:CE & ISO

4. Compressor type: Semi-enclosed screw-type

5. Refrigerating capacity: 344000Kcal/h

6. Warranty:1 year





Description:



  • Compressor high and low voltage protection, internal overheating protection

  • Low water flow alarm devices: Low water temperature anti-icing alarm

  • Compressor imported from Europe, America and Japan(Hanbell Levin Beverly)

  • Oxygen-free welding from refrigeration system, reduce the oxides and smooth the surface

  • Denmark Danfoss and USA Eco throttle components

  • Denmark Danfoss solenoid valve filter

  • Stainless steel plate, coil type, shell and tube, finned high efficiency heat exchanger

  • RS485 communication function for automated management(optional)

  • Brands OMRON, FUJI, TE, LG, MOELLER, ABB and WEST for electric appliances

  • Control mode: imported microcomputer or PLC(optional)

  • Perfect safety protection, fault display, easy repair and maintenance even without professionals

  • High-efficiency evaporator and condenser which can save energy by more than 30%

  • Temperature control range:7-35℃, Temperature control accuracy:±2℃





Specifications:



ITEM

UNIT

AC-400WS

Refrigerating capacity

Kcal/h

344000



KW

400

Input water

KW

85

Maximum Running Current

A

145

Energy adjust range

%

100-75-50-25-0

Power supply



3N-50HZ-380V

R22 Refrigerant

Filling Volume

kg

67



Control mode



Thermostatic External pressure expansion valve

Compressor

Model



Semi-enclosed screw-type



Power

Kw

85

Evaporator

Model



Shell and Tube



Chilled water flow

M3/h

68.8



Water resistance

Kpa

45



Water inlet/outlet diameter

DN

100.0

Condenser

Model



Shell and Tube



Chilled water flow

M3/h

89.4



Water resistance

Kpa

                     48



Water inlet/outlet diameter

DN

100.0

Protecting equipment



Over/low voltage switch, antifreeze switch, safety valve, overload protection devices, coil overheating protector, temperature automatically switch, reverse phase protector

Size(L×W×H)

mm

3200×900×1900

Weight

kg

2000

Running Weight

Kg

2180





Competitive Advantage:



  1. Our core competitiveness:advance technology,the pioneer of TCU industry, Convenient and efficient nationwide service network

  2. Excellent R&D team

  3. Customization thick copper pipe 1.0-1.2

  4. Our core concept:Innovation, high-quality, integrity, service, focus

  5. High density heat insulation cotton and aluminum foil

  6. Electric appliances brands:OMRON, JUJI, TE.LG, MOLLER, ABB and WEST

  7. The thickness of our machine rack is 1.2mm

  8. We have the production certification organic heat transfer material heater





Applications:



Aluminium Alloy: Car accessories

Magnesium alloy: Communication device, navigation

Hot Rolling Machine: Calender Rolls, Wood Presses, Laminating Presses,Molding Presses, Rubber Presses, Jacketed Vessels, Reactors, Heat Exchangers, Mixers, Printing Machines, Asphalt, Vulcanizing Presses.
Die casting,plastic  Injection molding, light guide plates, connectors, Chemical engineering, Shoe materials, Pringting and dyeing, Drying and banburying.



Low-temp Industrial Water Chiller 0



Low-temp Industrial Water Chiller 1





Low-temp Industrial Water Chiller 2





Low-temp Industrial Water Chiller 3





Nowadays, Aode Machinery Co.,ltd continue to uphold the purpose of international standards designs and high quality products, applying ourselves to providing high standard products and whole-journey nanny service. Our products are widely applied in plastic injection molding, light guide plates, connectors, chemical engineering, compression casting, reaction kettles, rubber tires, calendaring, shoe materials, printing and dyeing, drying and banburying and tec. And widely sold to Japan, America, Italy, Brazil, Southeast Asia, Africa and etc. The brand recognition from the market is sufficient to prove that our temp. control system can replace the imported similar products. Belows are our honor clients.
