Product Details:
|
Brand Name: | AODE | Certification: | CE, ISO |
---|---|---|---|
Application: | Pringting, Chemical, Extruder | Cooling Method: | Indirect Cooling |
Heat Transfer Medium: | Oil | Power Supply: | AC3∮380V |
Temp Control Accuracy: | PID±1℃ | Temperature Range: | Max 300℃ |
Product Name: | Oil Temperature Control Unit | ||
High Light: | industrial chiller units,temperature control unit |

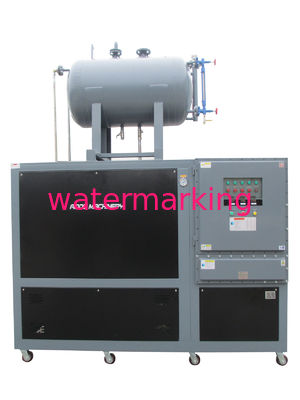

Explosion-Proof Isolated Oil Temperature Control Unit 90KW , 300 Degree
Quick Detail:
1. Explosion-proof isolated
2. Electric box external charged accessories explosion-proof
3. Explosion-proof equipment(optional)
4. Certification:CE & ISO
5. Pump pressure:5.0Kg/cm2
6. Pump power: 5.5KW
7. Alarm function:pump reversal,Oil shortage, overheating, overload ,oil spill, abnormal heating alarm and trip power outage
Description:
Specifications:
ITEM |
UNIT |
AEOT-75BF-90 |
Temp control range |
℃ |
Normal temp-300℃ |
Temp control accuracy |
℃ |
PID±1℃ |
Power supply |
|
AC3∮380V(3Phase+Earth) |
Heat transfer medium |
|
Thermo conductive oil |
Cooling method |
|
Without Cooling |
Expansion Tank |
L |
150(External) |
Heating capacity |
KW |
80(40+40)/90(45+45) |
Pump power |
KW |
5.5 |
Pump flow |
M3/h |
12.5(18) |
Pump pressure |
Kg/cm2 |
5.0(4.0) |
Max. power consumption |
KW |
96 |
Alarm function |
|
Pump reversal/Oil shortage/Overheating/Overload/Oil spill/Abnormal heating alarm/trip power outage |
Cooling water pipe |
inch |
NA |
Circulating oil pipe |
inch |
1-1/2 |
Size(L×W×H) |
mm |
2250×800×1800 |
Heat pipe size/ length+ flange outer diameter |
L×φ
|
1650×φ520 |
Competitive Advantage:
1. Strict quality control system
2. Three factories in shenzhen, tianjin and suzhou. More than 60 offices in China.
3. Our product is environmental and energy-saving
4. We have the production certification organic heat transfer material heater
5. High density heat insulation cotton and aluminum foil
6. Electric appliances brands:OMRON, JUJI, TE.LG, MOLLER, ABB and WEST
7. Imported microcomputer or PLC
8. Customization thick copper pipe 1.0-1.2
Applications:
Chemical Industry, Food Industry, Western medicine
Hot Rolling Machine: Calender Rolls, Wood Presses, Laminating Presses,Molding Presses, Rubber Presses, Jacketed Vessels, Reactors, Heat Exchangers, Mixers, Printing Machines, Asphalt, Vulcanizing Presses.
Die casting,plastic Injection molding, light guide plates, connectors, Chemical engineering, Shoe materials, Pringting and dyeing, Drying and banburying.
Nowadays, Aode Machinery Co.,ltd continue to uphold the purpose of international standards designs and high quality products, applying ourselves to providing high standard products and whole-journey nanny service. Our products are widely applied in plastic injection molding, light guide plates, connectors, chemical engineering, compression casting, reaction kettles, rubber tires, calendaring, shoe materials, printing and dyeing, drying and banburying and tec. And widely sold to Japan, America, Italy, Brazil, Southeast Asia, Africa and etc. The brand recognition from the market is sufficient to prove that our temp. control system can replace the imported similar products. Belows are our honor clients.
