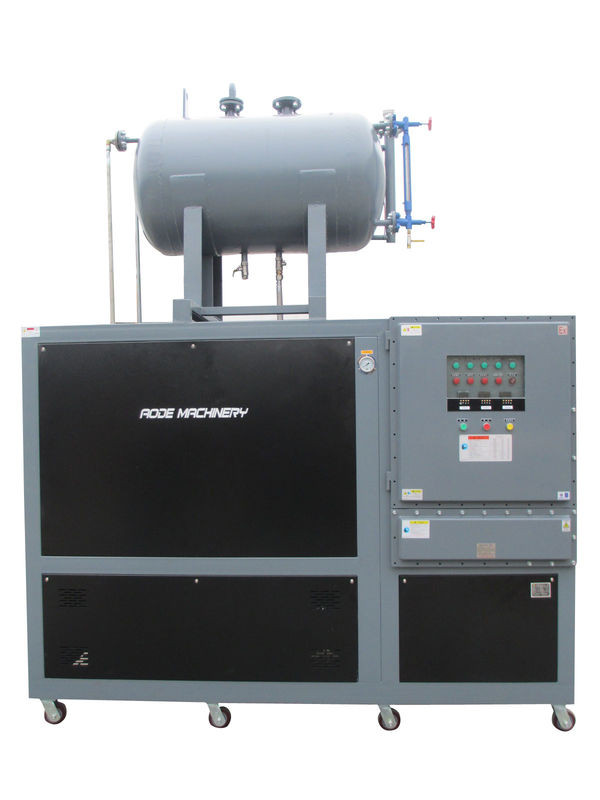

Thermoforming Oil Temperature Control Units (TCU) with Negative-pressure System for Plastic Injection Molding AEOT-50

Product Details
Place of Origin: China
Brand Name: AODE
Model Number: AEOT-50
Payment & Shipping Terms

Detail Information

Place of Origin China Brand Name AODE
Model Number AEOT-50 High Light:

oil temperature control

,

Reactors

,

printing

Product Description

Features

Negative-pressure system (optional)

Explosion-proof equipment (optional)

Air blowing and return oil return function (optional)

RS485 communication function for automated management (optional)

Shutdown delayed cooling function (optional)

Control mode: imported microcomputer or PLC (optional)

Thermometer for return oil

Automatic air-exhausting function after start up

Switch over of heating power

Isolated electric box for longer services lives of electric appliances

BY-PASS pressure release loop for hot oil

Customizable multi-point temperature control unit

Customizable horsepower and heating power of oil pump

Brands OMRON, FUJI, TE. LS. MOELLER, ABB, WEST for electric appliance

Range of temperature control:+25℃-300℃ for incoming water

CE certificate

Stainless steel integrated pipelines for less pipe resistance and rust

Perfect safety protection, fault display, easy repair and maintenance even free of professionals

Advantages

Electric appliances brands: OMRON, JUJI, TE.LG, MOLLER, ABB and WEST

Strict quality control system

We have the production certification organic heat transfer material heater

High density heat insulation cotton and aluminum foil

Our product is environmental and energy-saving

Imported microcomputer or PLC

Customization thick copper pipe 1.0-1.2

Application

Aluminum Alloy: Car accessories

Magnesium alloy: Communication device, navigation

Hot Rolling Machine: Calendar Rolls, Wood Presses, Laminating Presses, Molding Presses, Rubber Presses, Jacketed Vessels, Reactors, Heat Exchangers, Mixers, Printing Machines, Asphalt, Vulcanizing Presses.
Die casting, plastic Injection molding, light guide plates, connectors, Chemical engineering, Shoe materials, Printing and dyeing, Drying and ban burying.

Instructions

Item

AEOT-20

AEOT-30

AEOT-40

AEOT-50

AEOT-75

AEOT-100

Temp range

Inlet water temp 45℃-300℃

Temp control accuracy

PID±1℃

Power supply

AC3 380V 50Hz/60Hz 3P+E(5M)

Heat transfer medium

Thermo conductive oil

Cooling method

Indirect cooling

Expansion tank capacity(liter)

24

28

55

55

100

150

Heating capacity(KW)

18/24

30/36

36/50

40/60

50/75

80/100

Pump power(kw)

1.5

2.2

3

4

5.5

7.5

Pump flow(l/min)

6

10

12.5

16

12.5(18)

25(30)

Pump pressure(kg/c㎡)

2.2

2.8

3

3.2

5(4)

5(4.8)

Maximum power consumption(kw)

25.5

38.5

53

64

82.5

132

Alarm Function

Open phase/out of oil/excess temp/overload/oil overflow

Cooling water pipe(inch)

1/2

1/2

1/2

1/2

1/2

/

Circulating water pipe(inch)

3/4

1

1 1/4

1 1/4

1 1/2

2

Size(mm)

1150*420*1000

1350*500*1150

1570*550*1200

1570*550*1200

1570*550*1200

1570*600*1400

The specifications above are subject to changes without notice. Customization is available on your specifications.
