Standard Oil Water Heater Mold Temperature Control Unit For Injection Mold

Standard Oil Water Heater Mold Temperature Control Unit For Injection Mold
Standard Oil Water Heater Mold Temperature Control Unit For Injection Mold Standard Oil Water Heater Mold Temperature Control Unit For Injection Mold Standard Oil Water Heater Mold Temperature Control Unit For Injection Mold Standard Oil Water Heater Mold Temperature Control Unit For Injection Mold Standard Oil Water Heater Mold Temperature Control Unit For Injection Mold

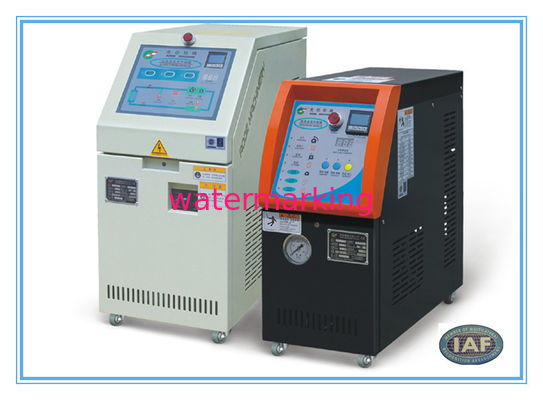

Large Image :  Standard Oil Water Heater Mold Temperature Control Unit For Injection Mold

Product Details:
Place of Origin: China
Model Number: AOS-30
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: Protective/air bubble film, Wooden case. As client’s requirement.
Delivery Time: Within 20days after receiving deposit
Payment Terms: 30% T/T in advance, 70% balance before we delivery
Supply Ability: 500pcs/month

Standard Oil Water Heater Mold Temperature Control Unit For Injection Mold

Description
Brand Name: AODE Certification: CE
Application: Die Casting|Plastic Injection Molding|Pringting|Rubber Presses|Chemical Cooling Method: Indirect Cooling
Heat Transfer Medium: Oil Power Supply: AC3∮380V
Temp Control Accuracy: PID±1℃ Temperature Range: 25℃-180℃
High Light:

temperature control unit

,

Water Temperature Controller



Standard Oil Water Heater Mold Temperature Control Unit For Injection Mold





Quick Detail:



1. Certification:CE & ISO

2. Temp. Control accuracy:PID±1℃

3. Temp. Control range: Inlet water temperature+25℃-180℃

4. Controller:microcomputer

5. Heating capacity: 18KW

6. Maximum power consumption: 20.25KW

7. Alarm function:Excess temperature, open phase, oil starvation, overloading, reverse turn





Description:



  • Air blowing and return water function(optional)
  • Thermometer for return water
  • Explosion-proof equipment(optional)
  • Automatic air-exhausting function after startup
  • Switchover of heating power
  • Instant cooling shut-down function(optional)
  • RS485 communication function for automated management(optional)
  • BY-PASS pressure release loop for hot water
  • Customizable multi-point temperature control unit
  • Customizable horsepower and heating power of water pump
  • Brands OMRON, FUJI, TE, LG, MOELLER, ABB, and WEST for electric appliances
  • Range of temperature control: +15℃-180℃ for incoming water
  • Stainless steel integrated pipelines for less pipe resistance and rust
  • Control mode: imported microcomputer or PLC(optional)
  • Perfect safety protection, fault display, easy repair and maintenance even free of professionals





Specifications:



ITEM

UNIT

AOS-30

Temp control range

Inlet water temperature +25℃-180℃

Temp control accuracy

PID±1℃

Power supply



AC3∮380V 50HZ +E(5M)

Heat transfer medium



Conduction oil

Cooling method



Indirect Cooling

Heating capacity

KW

18

Max. power consumption

KW

20.25

Horsepower of pump

hp

3

Working flow of pump

L/min

                   150

Working pressure of pump

Kg/cm2

2.0

Oil reserve

liter

30

Alarm function



excess temperature/Open phase/oil starvation/

overloading/reverse turn

Cooling water pipe

inch

1/2

Circulating water pipe

inch

1/2×4

Size(L×W×H)

mm

1000×420×1100





Competitive Advantage:





1. Three factories in shenzhen, tianjin and suzhou. More than 60 offices in China.

2. Our product is environmental and energy-saving

3. Strict quality control system

4. We have the production certification organic heat transfer material heater

5. High density heat insulation cotton and aluminum foil

6. Electric appliances brands:OMRON, JUJI, TE.LG, MOLLER, ABB and WEST

7. Imported microcomputer or PLC

8. Customization thick copper pipe 1.0-1.2





Applications:



Chemical Industry

Hot Rolling Machine: Calender Rolls, Wood Presses, Laminating Presses,Molding Presses, Rubber Presses, Jacketed Vessels, Reactors, Heat Exchangers, Mixers, Printing Machines, Asphalt, Vulcanizing Presses.
Die casting,plastic  Injection molding, light guide plates, connectors, Chemical engineering, Shoe materials, Pringting and dyeing, Drying and banburying.
