Save Energy Injection Molding Temperature Controller With Indirect Cooling Way
| Place of Origin: | ZHEJIANG,CHINA |
| Brand Name: | KASSEL |
| Certification: | CE,ISO |
| Model Number: | KEOT-40-50 |
| Minimum Order Quantity: | ONE |
| Price: | N.A. |
| Packaging Details: | Export Wooden Case |
| Delivery Time: | Talking |
| Payment Terms: | T/T |
| Supply Ability: | 6 SETS PER MONTH |
|
Detail Information |
|||
Product Description

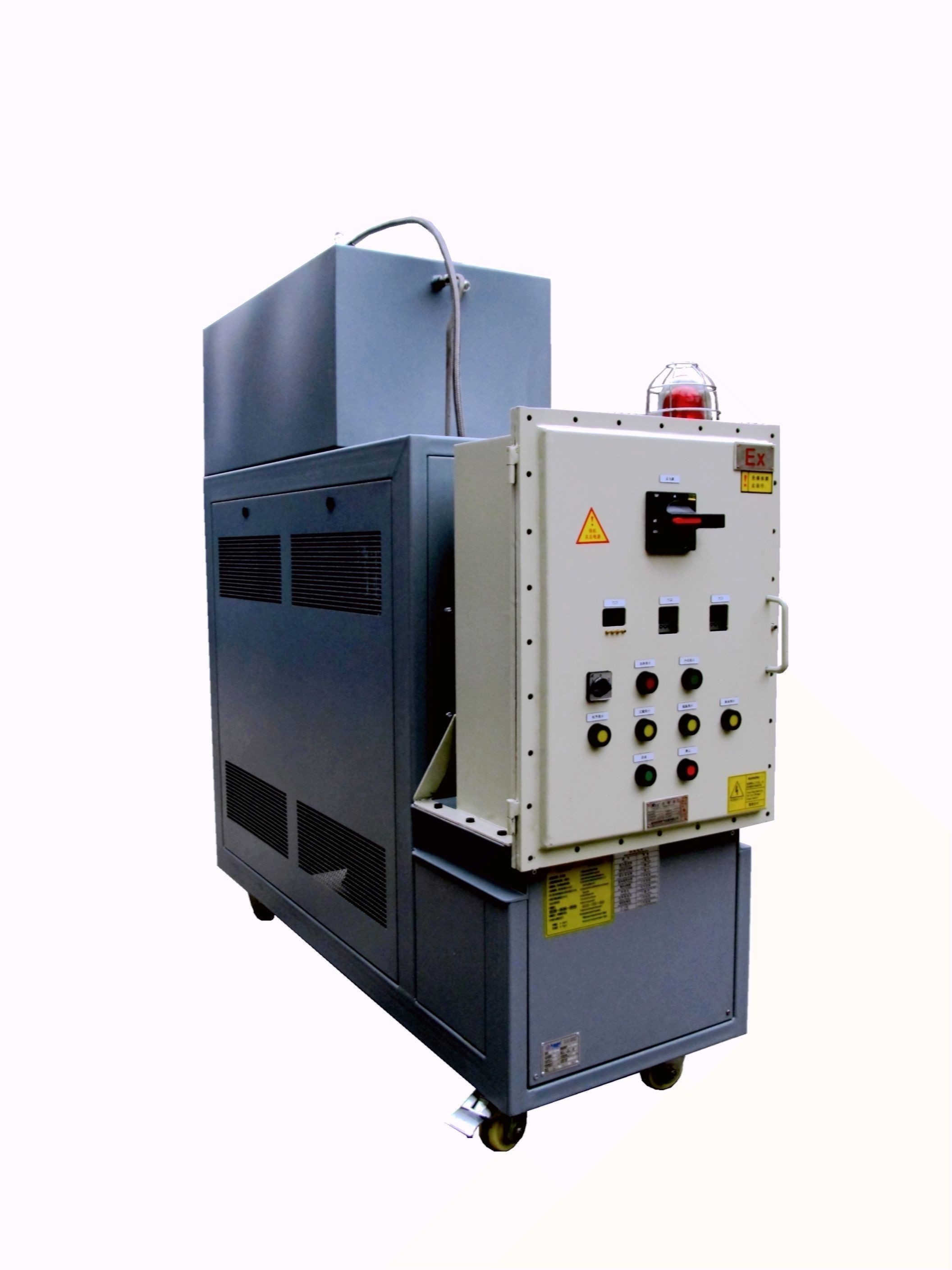

300℃ 50 KW Oil Temperature Control Unit And Hot Transfer Fluid / For Mixers And Wood Presses
Quick Detail:
KEOT Mold Temperature Control Units (TCU) are used to preheat a process to the desired operating temperature by engaging the unit's electric immersion heater and recalculating the oil in the system
MAX temperature:300℃ power of heating:50KW
Offered with a pumping capacity of large GPM; single, dual, or triple zone configurations; and varying heating capacities, KASSEL can match a system to meet your temperature control processing requirements. These systems feature the latest control technology, unique design philosophies, and unmatched electrical/safety standards to ensure precise process fluid temperature control.
Applications:
Chemical engineering, rubber, plastic, building, coating, paper rolling, food, pharmacy, packing
Specifications:
|
Max temperature(℃) |
300 |
Heat power (KW) |
50 |
|
Pump head(M) |
32 |
Max pump flow M³/H |
12.5 |
|
Pump Power(kw) |
3.0 |
Tank (L) |
55 |
|
Transfer medium |
Oil |
Cooling way |
Indirect |
|
Control precision(℃) |
PID +/-1℃ |
Pipe |
2-1/2 |
|
Alert function: pump reversal/oil shortage/overheating/overload/oil overflow |
|||
Competitive Advantage:
1. The unit design is compact, economical, efficient and basically maintenance free.
2. Rapid heating and cooling. Temperature kept stable at all times.
3. P.I.D. multi-stage temperature control system can maintain a mould temperature with accuracy of ±1°C.
4. Adopts high efficiency oil cycle pump, which can meet the demands of temperature control for precise moulds and mould loop with minor diameter to achieve precise temperature control and high efficient heat exchange.
5. Pump inside adopts stainless steel to avoid explosion.
