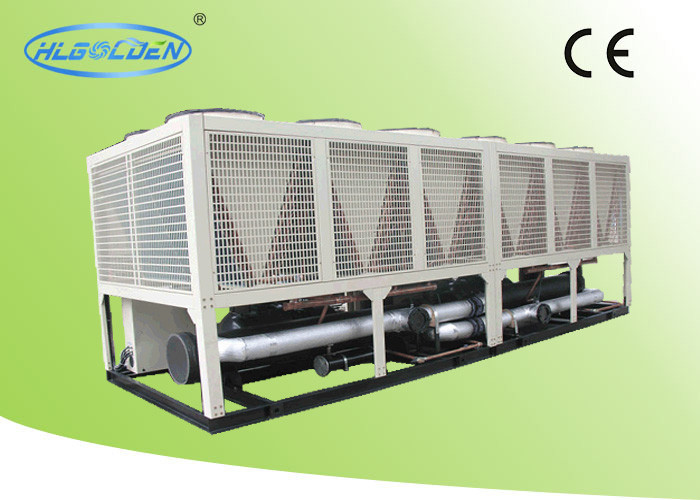

632kw Modular Air Cooled Screw Chiller / Air Conditioning Chiller CE Approvals
| Place of Origin: | Guangdong |
| Brand Name: | GOLDEN |
| Certification: | CE |
| Model Number: | HLWA-630DM |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T, Western Union, L/C, MoneyGram |
| Supply Ability: | 300 units per month |
|
Detail Information |
|||
Product Description
632kw Modular Air Cooled Screw Chiller / Air Conditioning Chiller CE Approvals
1. Description:
HUALI air chiller adopt the international famous branded screw type compressor , and equip with the high
efficient copper as condenser , evaporator and famous branded control components, which make the chiller
unit feather as compact size, low noise and vibration , high cooling capacity, easy operate and long service
life.
Product Features :
- · The new type international brand high efficiency screw type compressor, which is 20%-30% high
- efficient than normal compressor.
- · The cooling capacity control take the four steps ( 100%-75%-50%-25% )or three steps (100%-66%-33%)or no steps control system.
- · High efficiency, low noise and vibration, the unit no need any anti -vibration measures and easy to
- install.
- · The Japan brand PUNP PLC program control system , human-computer interface with big LED touch screen , can make the dialogue between man and machine.
- Multi-language display the working condition of the machine, and self-diagnosis function can
- detect the
- machine fault automatically, which is convenient for the worker to operate and supervise the machine.
- · It can connect the external industrial interface ,which is convenient to achieive the computer monitor
- by intelligent network control.
- · High and Low pressure , compressor overheating , overloading, over temperature , flow switch,
- phase sequence, phase-missing, exhaust overheating, anti-freezing and multiple safety protection to guarantee the machine
- in a safe and stable operation.
2. Specification:
|
Modular water chiller |
|||
|
Model HLWH～ |
360DM |
630DM |
|
|
|
Cooling Capacity (KW) |
358 |
632 |
|
Comp. Input Power (KW) |
116.4 |
197.8 |
|
|
Refrigerant |
R407C |
||
|
Power Supply |
380V/ 3ph/ 50Hz |
||
|
Number of Refrigeration Circuit |
2 |
||
|
Capacity Control (%) |
0, 25, 37.5, 50, 62.5, 75, 87.5, 100 |
||
|
Refrigerant Charge (Kg) |
114 |
196 |
|
|
Air Cooled Heat Exchanger |
Ripple Aluminum Fins Around Copper Pipe |
||
|
|
Dia.of Pipe (inch) |
5" |
4"×2 |
|
|
1 |
||
|
Chilled Water Flow(m3/h) |
61.6 |
108.7 |
|
|
Water Pressure Drop (kPa) |
42 |
65 |
|
|
Flow of Hot Water(m3/h) |
66.6 |
116.1 |
|
|
|
|
172.8 |
321.6 |
|
Power×Qty (KW) |
1.2×12 |
2.0×16 |
|
|
Running Noise dB(A) |
75 |
75 |
|
|
Total Weight (Kg) |
5620 |
7320 |
|
|
Running Weight(Kg) |
6040 |
7960 |
|
3. Installation Drawing:
4.Main Parts:
|
Main accessories |
Model |
Original place |
Brand |
|
Compressor |
RC2 |
Shanghai |
HANBELL |
|
Fan Motor |
YSWF |
Hangzhou |
MAER |
|
Expansion Valve |
TRAE |
China |
ALCO |
|
Filter |
Standard |
Guangzhou |
UAR |
|
Thermorelay |
GTH/TK |
Suzhou/Shanghai |
LG/FUJI |
|
Contactor |
GMC/SC |
Suzhou/Shanghai |
LG/FUJI |
|
Microcomputer |
DM |
Guangzhou |
PUNP |
5. Real Photos:
