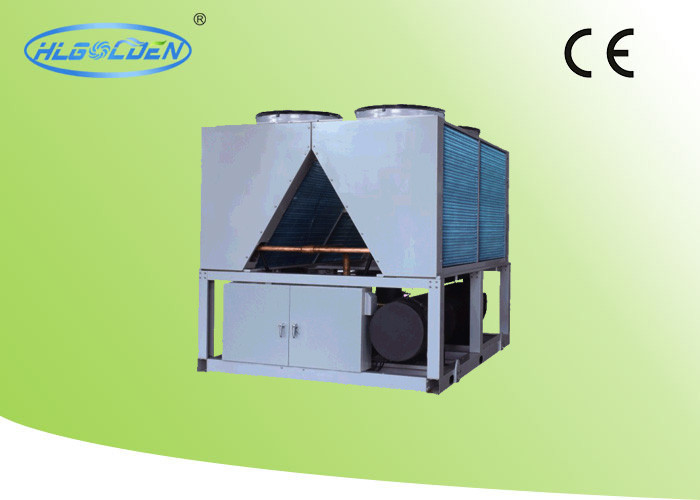

100RT Residential Air Cooled Water Chiller with Double Screw Compressor

Product Details
Place of Origin: Guangdong
Brand Name: GOLDEN
Certification: CE
Model Number: HLWA-380DM
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 30 working days
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 300 units per month

Detail Information

Place of Origin Guangdong Brand Name GOLDEN
Certification CE Model Number HLWA-380DM
Application: Industrial Cooling Cooling Capacity: 358 KW
Refrigerant: R410A, R407C, R134A Power Supply: 380V-3PH-50HZ
Evaporator: Shell And Tube Type Heat Recover: Optional
Certificate: CE Compressor: Hanbell Screw Compressor
Compressor Quantity: Double High Light:

Rotary Screw Chiller

,

Air Cooled Split Unit

Product Description



100RT Residential Air Cooled Water Chiller with Double Screw Compressor





1. Description:



Hanbell screw compressor, dry shell tube type evaporator, copper tubes covered with aluminum foil

condenser, and controlled by microcomputerized controller. Multiple protecting functions. Adopting 1 set to 2

 sets of compressors,installed outdoor, covering no machine room.Due to its application of air cooling, thereis

 no need of cooling tower and cooling pump.





Applications:



This series chiller is suitable to central air conditioning system for general residents, villa, small canteen,

shops,hotel,KTV, office buildings and commercial buildings etc.

Refrigeration standard operating mode:

Ambient temperature 35°CDB/24°CWB;

Cold water-in temperature 12°C, water out temperature 7°C.

Heat standard operating mode: Ambient temperature 7°CDB/6°CWB;

hot water in temperature 40°C, water out temperature 45°C.




2.Specification:



   Model     HLWA~

380DM


Rated Cooling Capacity

X 1000Kcal/h

307.8

KW

358

Comp. lnput Power×Qty (KW)

58.2×2

Refrigerant

R407C

Power Supply

380V/ 3ph/ 50Hz

 Number of Refrigeration Circuit

2

Capacity Control (%)

0, 25, 37.5, 50, 62.5, 75, 87.5, 100

Refrigerant Charge (Kg)

104

 Condenser

Ripple Aluminum Fins Around Copper Pipe


Evaporator

 Dia.of Pipe (inch)

5"


Water Side Max Pressure  (MPa)

1


Chilled  Water Flow(m3/h)

61.6

 Water Pressure drop (kPa)

42


Axial Fan


Air Flow×1000m3/h

172.8

Power×Qty (KW)

1.2×12

 Running Noise dB(A)

72

 Total Weight (Kg)

4430

 Running Weight(Kg)

4750





3. Installation Drawing:


100RT Residential Air Cooled Water Chiller with Double Screw Compressor 0





4. Real Photos:





100RT Residential Air Cooled Water Chiller with Double Screw Compressor 1100RT Residential Air Cooled Water Chiller with Double Screw Compressor 2
