Counter Flow Square Type Cooling Tower For Circulating Water System

Product Details

Place of Origin: China

Brand Name: HOHD

Certification: ISO

Model Number: CNTS

Payment & Shipping Terms

Minimum Order Quantity: Negotiation

Price: Negotiation

Packaging Details: According to customer’s requirment

Delivery Time: 7-15days

Payment Terms: L/C T/T,Paypal

Get Best Price
Highlight:

square cooling tower

,

wet cooling tower'

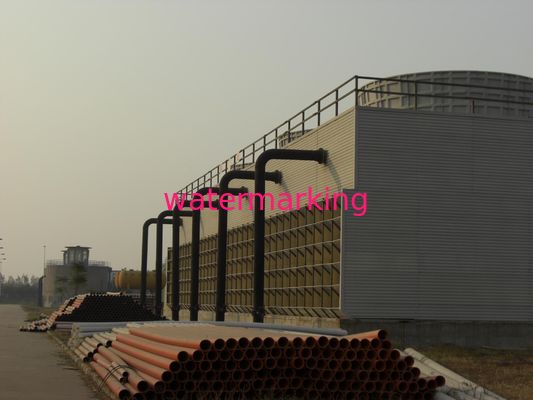

Counter Flow Square Type Cooling Tower For Circulating Water System



Counter Flow Square Type Cooling Tower For Circulating Water System





Competitive Advantage:



  • High-qualified draught device
  • Non-metalizing of the components
  • Streamlining of air-flow field
  • Low energy-consumption of operation
  • Super low loss of drift





Quick Detail:



CNTS serial square counter flow cooling tower with steel structure is a advanced kind of cooling tower with perfect technology and reliable performance. The cooling tower has passed the inspection and test for the running tower and all kind of performance data have hit or exceed the national standard value stipulated in GB7190-2008 “Cooling tower of Plastic with enhanced glass fiber”.





Specifications:



Model

Waterflow per cell

(m3/h)

Dimension

Mechnical equipment

L(mm)

W(mm)

H(mm)

Fan Dia.

(mm)

Airflow(m3/h)

Motor(KW)

CNTS-3000

3000

14000

14000

10200

8000

1840000

110

Design condition:

  1. The inlet temp. and outlet. Temp. is 43℃ and 33 ℃;
  2. The WBT is 28℃;
  3. SS is less than 50 ppm.





Description:



CNTS serial counter flow cooling tower applies the full steel structure with FRP enclosure casing, which structure not only greatly decrease weight of tower, but also looks beautiful.

The rigid truss system is used for the tower’s body of FRP cooling tower with steel structure. The connections between all parts are galvanized bolts. The steel pipe with larger turning radius is used as bellied rod to form the truss between beam and column. According to section junctions, the number may be added or reduced. So that it makes the structure of tower’s body not only have better whole rigidity but also the stress distribution have been changed. It is reasonable better for the structure to withstand force. The structure has the function to withstand forces come from all directions, and concentrates load, non-symmetric force and dynamic load caused by earthquake etc. it is very superior to reduce the vibration of cooling tower.





Applications:



CNTS serial cooling tower with ascendant performance and good quality have been widely used in the circulating water system in such fields as Air-conditioning, Electric, Chemical, Metallurgy.
