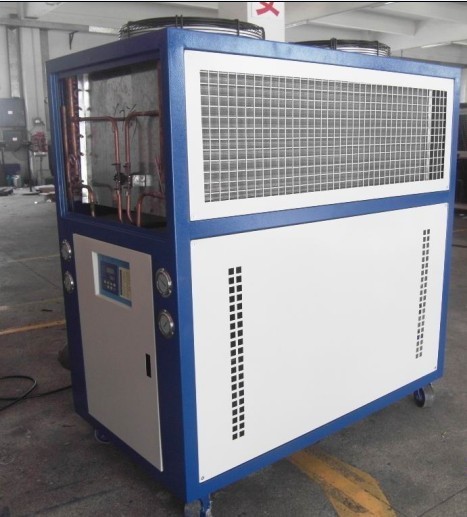

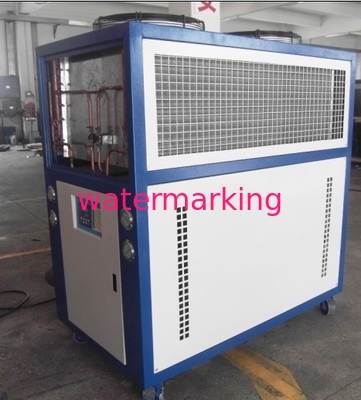

Air cooled Water Chiller with Cooling Capacity16.09KW Daking Compressor

Air-cooled Chiller Special Features:

1. without water-cooling tower for easier installation and higher mobilit. It is favorable there is lack of water supply or when water-cooling tower is not applicable.

2. Low noise fan motor privides excellect cooling and condensation effects. The throttle unit is stable and finished with high-grade anti-rust treatment.

3. Equippment with a powerful compressor imported from U.S and Europe. The compressor operates smoothly and quietly at high EER value.

 Air-cooled Chiller Specif Cactions:

1. Cooling Caopacity: 16.90 kw

                                14530 kcal/h

2. Power Supply Volt:  3N-380V/415V-50HZ/60HZ

3. Refrigerant: Name: R22/R134A/R410/R407C

                      Fill: 5 kg

                      Control Type: With hermetic gyral or piston

4. Compressor: Type: With hermetic gyral or piston

                       Motor: 4.5 kw

5. Air Flow: 6000 m³/h

6. Freeze Water: Flow: 2.91 m³/h

                        Tank: 0.11 m³

                        In/Out PipeSize: G1''

7. Pump: Motor: 0.75 kw

              Raise: 200 kpa

8. Dimension: 1200*650*1450(L*W*H)

9. Weight: 250 kg

welcome to contact with me

 Attn: M.s Joey.     Email: joey@rozl.com

 Remarks: we will provides you the conponent to change if there are something wrong with our product within one year although we haven't the overseas service provided.(freight is not included) .the product can be made depend on your need

 Have a good time

Introduction of Company:

 ShenZhen RIOU Refrigeration Company specialized in industrial chiller, the main product are chiller and mould temperature controller. the chiller  contain Air-cooled chiller and Water-cooled chiller. we are specialized in refrigetation equipment, ancillary equipments for plasticprocessing machines and electronic electroplating equipment are included.

 Customer Case :

 1.Midea

 2.EMERSON

 3.Great Wall

 4.Canon

 5.Gree

 6.ANDREW
