High Efficiency Air Cooled Water Chiller Temperature Control Range 5-30 Degree
| Place of Origin: | China |
| Brand Name: | HOHD |
| Certification: | ISO |
| Model Number: | HOHD |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | According to customer’s requirment |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C T/T,Paypal |
| Supply Ability: | 100 Set/Sets per Week |
|
Detail Information |
|||
Product Description
Quickly Detail:
Chilled water temperature: 5 to 30 degree
Work without water cooling tower
Low noise and easy to move

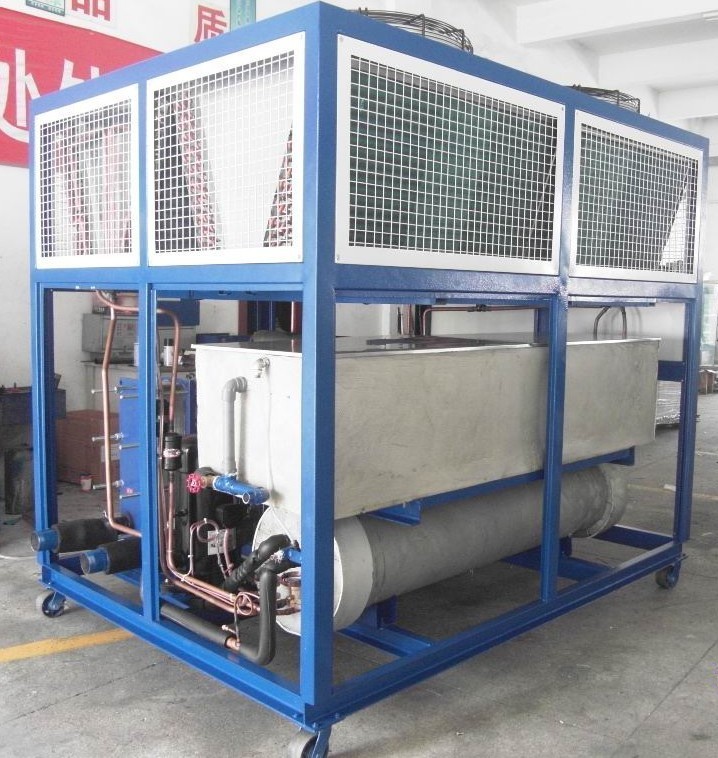

Description of Air Cooled Water Chiller:
Air cooled water chiller no need to work with water cooling tower together which is suitable for the place where is lack of water and difficult to install water cooling tower. when it works, it's low noise , stable instructure and high efficiency.
Application :
RIOU brand industrial chiller are the perfect solution for any application, in particular for the plastic field, such as : injection molding, extrusion(sheet & profile), blow molding, thermoforming, PET, plastic film, and other industrial field : electroplating (surface treatment), medicine, chemical, hydraulic system, leaser, shoe-making, electronic, print, etc
Parameter of Air-cooled Chiller
| Ithem | RO-50A | Unit | |
| Cooling Capacity | 135.49 | kw | |
| Power Supply Volt | 3N-380V/415V-50HZ/60HZ | ||
| Refrigerant | Name | R22 | |
| Fill | 20.5*2 | Kg | |
| Controltype | with hermetic gyral or piston | ||
| Compressor | Type | with hermetic gyral or piston | |
| Motor | 9.4*4 | kw | |
| Air Flow | 50000 | m³/h | |
| Freeze Water | Flow | 23.30 | m³/h |
| Tank | 0.61 | m³ | |
| Pipe Size | G3'' | mm | |
| Pump | Motor | 3.75 | kw |
| Raise | 240 | kpa | |
| Dimension | 2100*2000*1900(L*W*H) | mm | |
| Weight | 1280 | kg | |
