380 Volt Pipe Coil Type Air Cooled Water Chiller System 7.9KW for Aquarium

Product Details:
Place of Origin: Shenzhen
Brand Name: GOLDEN
Certification: CE
Model Number: HLLA~03SI
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 1300
Packaging Details: Standard packaged
Delivery Time: 15~25 days
Payment Terms: D/A, Western Union, MoneyGram
Supply Ability: 20 Units per Month
Contact Now

Detail Information

Function: Chilled Water Cooling Capacity: 9.2KW
Input Power: 3.85KW Compressor: 1 Pc
Comp. Current: 6.8A Power Supply: 380~400V/3PH/50HZ
Circuit Number: 1 Tank: 80L
Pump: 0.75KW Color: Blue
Type: Air Cooled Protection: Phase Reversion Protection
Noise: 72 Db(A)

Product Description



380 Volt Pipe Coil Type Air Cooled Water Chiller System 7.9KW for Aquarium





Production Description:



  1. Rated Cooling Capacity Based on: Chilled water inlet/outlet temp. 17℃/12℃, Cooling water  inlet/outlet temp. 30°C/35°C, Fouling factor: 0.088㎡.°C/KW
  2. Chilled Water Range: 5~20℃;
  3. Cooling Water Range: 20~40℃;
  4. Changes of Specification for improvement may be made without Notice.





Product Function:



  1. Applicable for Electroplating, plastic products, hardware, chemical industry, electronics, food preservation,laser carving, vacuum coating, ultrasonic cleaning etc industries.
  2. Chiller that uses high effective a easy cleaning stainless steel heat exchanger, exerts its unique advantageagainst erosion and filth in electroplating, PCB, oxidization, chemical Industry,etc weakacid and alkaline conditions.
  3. Compressor: Hitachi, Daikin, Danfoss, Copeland, client can choose the compressors.
  4. Safety production Device:Phase reversion protection, Phase lack protection, overload current protection, discharge air temp. protection, low & high pressure protection.





Product Detail:



  Model  HLLA ~

03SI

Rated Cooling Capacity

×1000 kcal/h

7.9



KW

9.2

Input Power (KW)

3.85

Comp. Input Power×Qty.  (KW)

2.6

 Chillded Water Pump Model

HT1.0DK-20

 Chilled Water Pump Power  (KW)

0.75

 Comp. Current (A)

6.8

Power Supply

3φ-380V-50HZ

 Safety Protection

Phase reversion protection,

Phase lack protection,

Overload current protection,

Discharge air temp.  protection,

Low & High pressure protection,

Low temp.  protection,

Water flow protection.

 Number of Refrigeration Circuit

1

 Capacity Control (%)

0, 100

 Refrigerant

R22

 Condenser

Ripple Aluminum Fins around Cooper Pipe

 Power lnput of Fan (KW)

0.5

 Evaporator

Pipe Coil Type

 Water Side Max Pressure (MPa)

-

 Dia.of Pipe to Evaporator (inch)

1"

 Chilled Water Flow (L/m)

26.4

 Evaporator Water Pressure drop (kPa)

-

 Running Noise dB(A)

72

 Tank Volume (L)

80

 Total weight (Kg)

130

 Dimension L×W×H

1000×650×1500





Product Show:

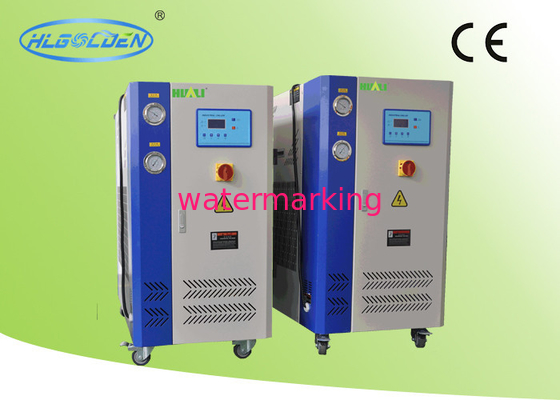

380 Volt Pipe Coil Type Air Cooled Water Chiller System 7.9KW for Aquarium

380 Volt Pipe Coil Type Air Cooled Water Chiller System 7.9KW for Aquarium

380 Volt Pipe Coil Type Air Cooled Water Chiller System 7.9KW for Aquarium
