Antacid 23.4kw Air Cooled Industrial Chiller With Microcomputer System

Send Me The Latest Product Alerts
(No SPAM - We would not sell or share your e-mail address.)

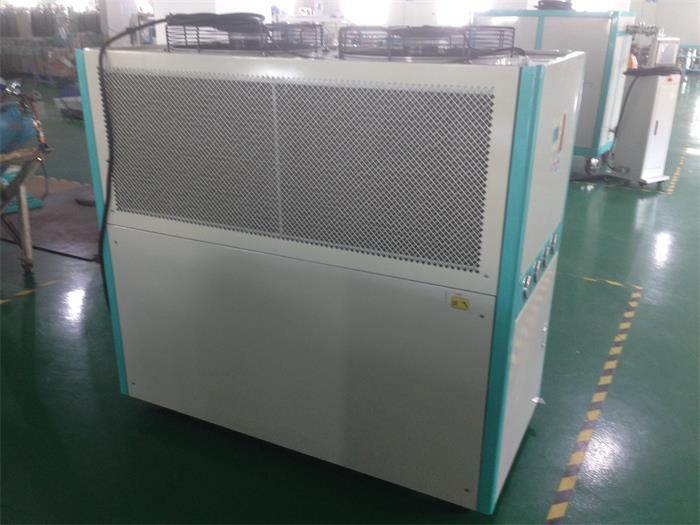

Antacid 23.4kw Air Cooled Industrial Chiller With Microcomputer System

Good Quality Antacid 23.4kw Air Cooled Industrial Chiller With Microcomputer System Sales

Large Image :  Antacid 23.4kw Air Cooled Industrial Chiller With Microcomputer System

GUANGDONG TOPSTAR TECHNOLOGY Co.,Ltd

Verified Supplier

China

Business type: Manufacturer, Exporter

Telephone : 86-769-85390821

No.90 Xintang Xin Road, Xintang Dalingshan Town, Dongguan City, Guangdong Province, 523822, China

Product Details:

Place of Origin: China
Brand Name: TOPSTAR
Certification: CE
Model Number: TCA-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD4300
Packaging Details: Plywood case package suitable for ocean shipping
Delivery Time: 20 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Detailed Product Description
Product Name: Air Cooled Chiller Application: Cooling
Cooling Capacity: 23.4kw Evaporator Type: Spiral Type
Condenser Type: Tube-fin Type Refrigerant: R22 Or R410
Standard: CE



CE Certificate Anti Acid Air Cooled Industrial Chiller With Microcomputer System





TCA Series Air Cooled Chiller



Air Cooled Chillers adopt fin condensers (without need of cooling water) with the features of rapid heat

transmission and excellent heat dispersion.  This series can be afforded cooling ranges from 5~35℃,

even lower to 3℃ (temperature controlled accuracy at ±1℃).

The compressors' power range from 3HP~50HP and cooling capacities range from 7800~ 128500 Kcal/hr.





Features



1. To adopt imported superb compressors and pumps to ensure safe & quiet running , power saving and

    durable service life.



2. To employ microcomputer with easy operation which can control temperature within ±3℃  to ±5℃

    precisely.



3. Unique design for condenser and heat- dispersion unit result in excellent heat-exchange effect.



4. To equip with electrical current overload protection, high & low-pressure switch, electronic timer delay

    safety device.  It will alarm to display faulty while any malfunction occurs.



5. To adopt with internal 304 stainless steel insulated water tank with durable service life for easy cleaning

    & maintenance.



6. Complete safety devices including power reverse phase & power short phase and anti-freeze

    protection.



7. Ultra low temperature type of chillers can reach below -15°C .



8. Chillers for anti-alkaline & anti-acid type can be customized.





Specification



 Model  TCA-8
 Cooling  Capacity  23400W
 No.of Compressors  2 set
 Compressor Total Power  6hp
 Refrigerant  R22
 Evaporator Type  Spiral Type
 Condenser Type  Tube-fin Type
 No.of Blower  2 sets
 No.of Cooling Water inlet/outlet  1 group
 Cooling Water Inlet/Outlet Size  DN40
 Water Tank Capacity  130L
 Pump Power  1hp
 Pump Flow  100L/min
 Pump Lifts  16M
 Power Supply  AC380V/3P/50HZ
 Dimension  158x75x150cm
 Weight  350kg







Antacid 23.4kw Air Cooled Industrial Chiller With Microcomputer System
