Product Details:
|
| Application: | Commercial Air Conditioner Or Industrial Cooling | Cooling Capacity: | 536 KW |
|---|---|---|---|
| Refrigerant: | R407C, R134A | Power Supply: | 380V-50HZ-3PH |
| Evaporator: | Shell And Tube Type | Heat Recover: | Optional |
| Certificate: | CE | Compressor: | Hanbell Screw Compressor |
| Compressor Quantity: | Single Or Double | ||
| High Light: | Rotary Screw Chiller,Air Cooled Split Unit |
||
High efficiency Air Water Chiller Air Water Chiller with Double compressor
1. Description:
The 140 to 200 ton Model HLWA Screw Chiller is ideal for projects requiring efficiency that meets ISO 2008,
The quiet operation of this unit is a result of our advanced single screw compressor design. These chillers use
R-407C refrigerant which has no ozone depletion potential and no phase-out date. Available options provide
the flexibility to meet a variety of project configurations.
Robust & Versatile
From 30 tons to over 300 tons and with an operating range from -20°F to +65°F, Cooling Technology central
chillers are built to command any industrial process cooling application from chemical processing and
injection molding to metal finishing.
Durable & Dependable
All Cooling Technology chillers are constructed
with the highest-quality components bolted to a heavy-gauge carbon steel frame primed and painted with acrylic enamel.
User-Friendly
Cooling Technology’s easy-to-use standard microprocessor controller offers a wide setpoint temperature.
Clean & Efficient
All Cooling Technology water piping can be manufactured with nonferrous material to ensure clean process
water and a corrosion-free environment. Completely insulated with closed-cell foam, our design approach
conserves energy.
Safety Comes Standard
Cooling Technology’s standard safety mechanisms include a high refrigerant pressure relief valve, automatic
high and low refrigerant pressure cut-off, and—on the process side—low flow cut-off and freeze protection.
2. Specification:
| Air cooled Water Chiller | |||
| Model HLWA～ | 560DM | ||
Rated Cooling Capacity |
X 1000Kcal/h | 460.9 | |
| KW | 536 | ||
| Comp. lnput Power×Qty (KW) | 82.4×1 | ||
| Refrigerant | R407C | ||
| Power Supply | 380V/ 3ph/ 50Hz | ||
| Safety Protection |
Overload current protection, protection, Low temp. protection, Water flow protection. |
||
| Number of Refrigeration Circuit | 2 | ||
| Capacity Control (%) | 0, 50, 75, 100 | ||
| Refrigerant Charge (Kg) | 156 | ||
| Condenser | Ripple Aluminum Fins Around Copper Pipe | ||
Evaporator |
Dia.of Pipe (inch) | 4"*2 | |
Water Side Max Pressure (MPa) |
1 | ||
Chilled Water Flow(m3/h) |
92.2 | ||
| Water Pressure drop (kPa) | 54 | ||
Axial Fan |
Air Flow×1000m3/h |
230.4 | |
| Power×Qty (KW) | 1.2×16 | ||
| Running Noise dB(A) | 75 | ||
| Total Weight (Kg) | 5500 | ||
| Running Weight(Kg) | 6040 | ||
3. Main parts;
|
Main accessories |
Model |
Original place |
Brand |
|
Compressor |
RC2 |
Shanghai |
HANBELL |
|
Fan Motor |
YSWF |
Hangzhou |
MAER |
|
Expansion Valve |
TRAE |
China |
ALCO |
|
Filter |
Standard |
Guangzhou |
UAR |
|
Thermorelay |
GTH/TK |
Suzhou/Shanghai |
LG/FUJI |
|
Contactor |
GMC/SC |
Suzhou/Shanghai |
LG/FUJI |
|
Microcomputer |
DM |
Guangzhou |
PUNP |

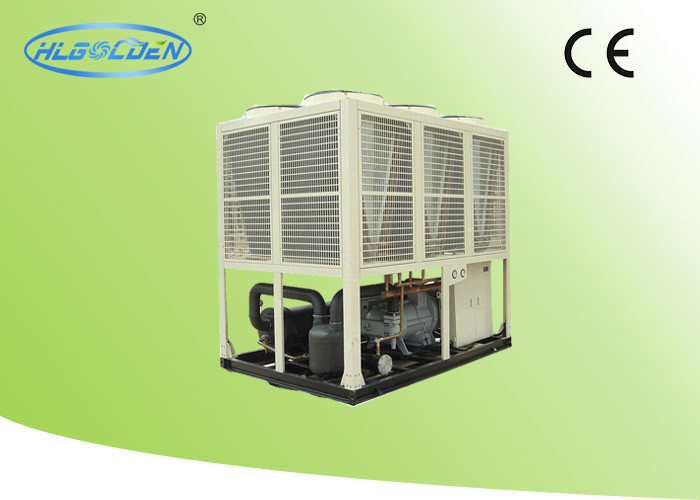

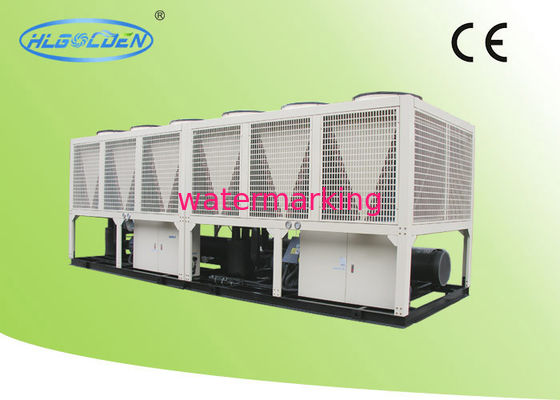

4. Real Photo:
