Semi-hermetic Air-Cooled Screw Chiller Unit RO-145AS R22 / 3N - 380V / 415V - 50HZ / 60HZ

Send Me The Latest Product Alerts
(No SPAM - We would not sell or share your e-mail address.)
  • Product Details

Semi-hermetic Air-Cooled Screw Chiller Unit RO-145AS R22 / 3N - 380V / 415V - 50HZ / 60HZ

Good Quality Semi-hermetic Air-Cooled Screw Chiller Unit RO-145AS R22 / 3N - 380V / 415V - 50HZ / 60HZ Sales

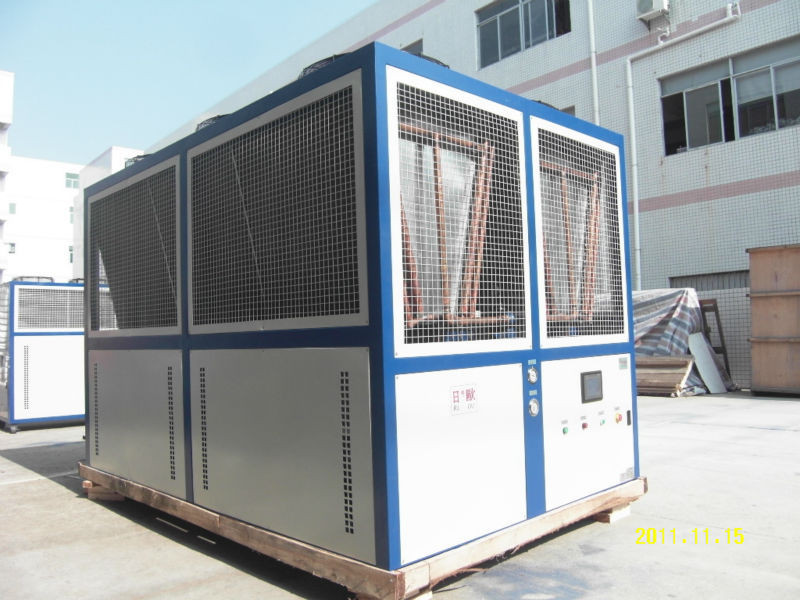

Large Image :  Semi-hermetic Air-Cooled Screw Chiller Unit RO-145AS R22 / 3N - 380V / 415V - 50HZ / 60HZ

Shenzhen Riou Refrigeration Machine Equipment Co., Ltd.

Active Member

GuangDong,China

Business type: Manufacturer, Exporter, Trading Company, Seller, Other

No.70 North Of Longling Street,Pingdi Road,Longgang District,Shenzhen, China

Product Details:

Place of Origin: GuangDong,China
Brand Name: RIOU
Certification: CE
Model Number: RO-145AS
Detailed Product Description

Semi-hermetic Air-Cooled Screw Chiller Unit RO-145AS R22 / 3N - 380V / 415V - 50HZ / 60HZ

Description of product:

1. RO air-cooled screw chiller with the plate-fin typed air-cooled condenser applies double-curved corrugated aluminum foil. which is water-contactable. it is manufactured by specialized heat exchanger processing machine. thanks for being extremely compact and light weight. aswell as the high heat exchange efficiency and the ventilator with large rachis in slow revolution, the workong noise level is obviously reduced so that the equinent is more environmental-friendly.

2. PLC used for the unit control system, the human machine interface configures a large touch screen which enables easy and visual operation.

3. the unit control system adopts a reliable safety protection equipment. such as ventilation overheat protector, emergency switch , thermal sensitive solubla chock and so on.

Item     Unit
Cooling Capacity 145 kw
Running Current 77 A
Power Supply Volt 3N-380V/415V-50HZ/60HZ
Capacity Control 0%-25%-50%-75%-100%
Compressor Type Screw Semi-hermetic
  Motor 45 kw
Refrigerant Type R22
  Control Method with hermetic gyral or piston
Chiller Type shell and tube
  Flow Rate 30 m³/h
  Pressure Drop 38 kpa
  Pipe Size 80 mm
Condenser Brass forge louver typealuminum plate-fin
Fan Type low noise aluminum blade axial fan
  Air Flow 54800 m³/h
Safety Device high/low pressure switch, anti-frost protector,overload protector and so on.
Size 1900*1900*2390(L*W*H) mm
Net Weight 1500 kg
Operating Weight 1600 kg



Configuration

Compressor COPELAND
Contact Element LG
Evaporator RO
Condenser RO
Expansion Valve ALCO
Pump SOUTH

welcome to contact with me
