Plastic Injection Molding Air Cooled Screw Chiller 2100*1200*2230mm

Good Quality Plastic Injection Molding Air Cooled Screw Chiller 2100*1200*2230mm Sales

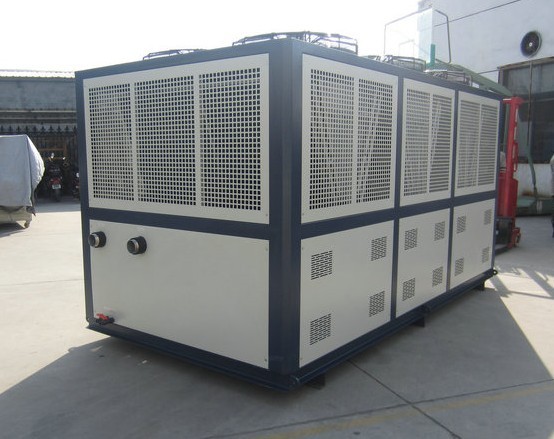

Large Image :  Plastic Injection Molding Air Cooled Screw Chiller 2100*1200*2230mm

SHENZHEN AODE MACHINERY CO.,LTD

Verified Supplier

China

Business type: Manufacturer, Exporter, Seller

Telephone : 86-0755-33232001-829

No.37,Dayang Industrial Area, Xingang East Road, Lougang Boulevard, Songgang Town, Bao'an District, Shenzhen

Product Details:

Place of Origin: China
Brand Name: Aode
Certification: ISO,CE
Model Number: AC-240AS

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Packaging Details: Protective/air bubble film, Wooden case. As client’s requirement.
Delivery Time: Within 20days after receiving deposit
Payment Terms: 30% T/T in advance, 70% balance before we delivery
Supply Ability: 500pcs/month
Detailed Product Description
Product Name: Air Cooled Screw Chiller Brand Name: AODE
Application: Plastic Injection Molding|Chemical Certification: CE|ISO
Compressor Type: Semi-enclosed Screw-type Dimension: 2100*1200*2230mm
Power Supply: 3N-50HZ-380V Temperature Range: 7-35℃
Theory: Air Cooled

Plastic Injection Molding Air Cooled Screw Chiller 2100*1200*2230mm





Quick Detail:



1. Temperature controlled7-35℃,precision controlled ±2℃

2. Max. Running current:145.2A

3. Refrigerant charge:62.3KG

4. Certification:CE & ISO

5. Compressor type: Semi-enclosed screw-type

6. Refrigerating capacity:206400Kcal/h

7. Warranty:1 year





Description:





1, Stainless steel plate, coil type, shell and tube, finned high efficiency heat exchanger

2, RS485 communication function for automated management(optional)

3, Brands OMRON, FUJI, TE, LG, MOELLER, ABB and WEST for electric appliances

4, Control mode: imported microcomputer or PLC(optional)

5, Perfect safety protection, fault display, easy repair and maintenance even without professionals

6, High-efficiency evaporator and condenser which can save energy by more than 30%

7, Temperature control range:7-35℃, Temperature control accuracy:±2℃







Specifications:



ITEM

UNIT

AC-240AS

Refrigerating capacity

Kcal/h

206400



KW

240

Power Input

KW

86

Maximum Running Current

A

145.2

Energy adjust range

%

100-75-50-25-0

Power supply



3N-50HZ-380V

R22 Refrigerant

Filling Volume

kg

62.3



Control mode



Thermostatic Expansion valve

Compressor

Model



Screw semi-hermetic



Power

Kw

79

Condenser



Copper Coil With Aluminium Fine

Fan

Type



Low Noise Aluminium Blade Axial Fa



Air Flow

M3/h

82000

Evaporator

Model



Shell and Tube



Chilled water flow

M3/h

41.3



Water resistance

Kpa

47



Water inlet/outlet diameter

DN

80.0

Protecting equipment



High/Low Pressure switch, Anti-frost Protector, Fusible Plug, Overload Protector, Motor Overheat Protector, Automatic Temperature Sensitive Switch, Anti-phase Protector

Size(L×W×H)

mm

1900×1900×2390

Weight

kg

1850

Running Weight

Kg

1970





Competitive Advantage:



  1. Our core competitiveness:advance technology,the pioneer of TCU industry, Convenient and efficient nationwide service network

  2. Excellent R&D team

  3. Customization thick copper pipe 1.0-1.2

  4. Our core concept:Innovation, high-quality, integrity, service, focus

  5. High density heat insulation cotton and aluminum foil

  6. Electric appliances brands:OMRON, JUJI, TE.LG, MOLLER, ABB and WEST

  7. The thickness of our machine rack is 1.2mm

  8. We have the production certification organic heat transfer material heater





Applications:



Aluminium Alloy: Car accessories

Magnesium alloy: Communication device, navigation

Hot Rolling Machine: Calender Rolls, Wood Presses, Laminating Presses,Molding Presses, Rubber Presses, Jacketed Vessels, Reactors, Heat Exchangers, Mixers, Printing Machines, Asphalt, Vulcanizing Presses.
Die casting,plastic  Injection molding, light guide plates, connectors, Chemical engineering, Shoe materials, Pringting and dyeing, Drying and banburying.



Plastic Injection Molding Air Cooled Screw Chiller 2100*1200*2230mm



Plastic Injection Molding Air Cooled Screw Chiller 2100*1200*2230mmPlastic Injection Molding Air Cooled Screw Chiller 2100*1200*2230mm





Nowadays, Aode Machinery Co.,ltd continue to uphold the purpose of international standards designs and high quality products, applying ourselves to providing high standard products and whole-journey nanny service. Our products are widely applied in plastic injection molding, light guide plates, connectors, chemical engineering, compression casting, reaction kettles, rubber tires, calendaring, shoe materials, printing and dyeing, drying and banburying and tec. And widely sold to Japan, America, Italy, Brazil, Southeast Asia, Africa and etc. The brand recognition from the market is sufficient to prove that our temp. control system can replace the imported similar products. Belows are our honor clients.



Plastic Injection Molding Air Cooled Screw Chiller 2100*1200*2230mm
