Product Details:
|
| High Light: | industrial cooling systems,industrial water coolers |
||
|---|---|---|---|

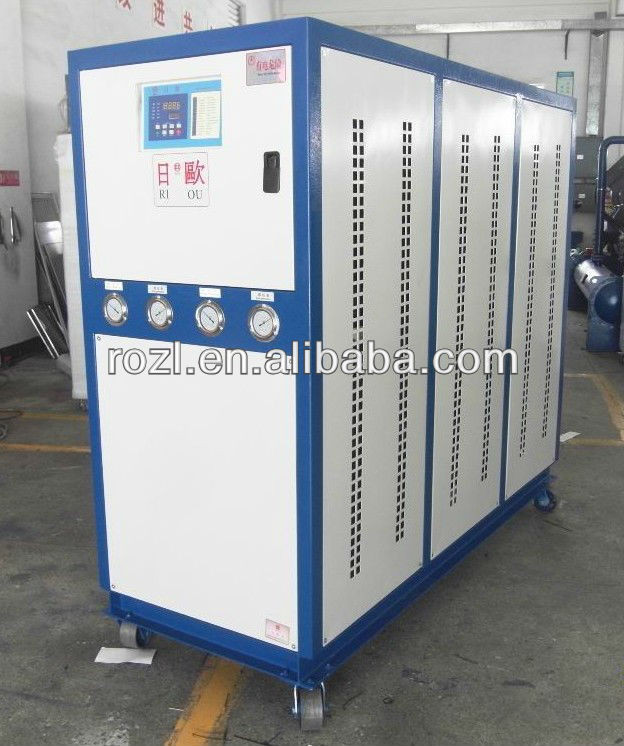

R22 380V Industrial Water Chiller With Single Compressor For Plastic Moulds
Quick Detail:
Features:
1.The water chiller is to provide cooling process to plastic moulds to improve molded p
roducts quality and cut down injection cycle time. Hence maximizes plastic molding
machines productivity.
2. Installed with import compressors, highly efficient shell condenser and evaporator,
excellent cooling, quiet and low electricity consumption.
3. Microprocessor control, easy to operate;
4. Unique open reservoir tank made of stainless steel, easy cleaning and maintenance;
5. Pipeline well-arranged to save energy;
6. Installed will precise electronic thermostat accurately maintains temperature within
30C~50C;
7. Installed with current overload protector, high and low pressure switch, electronic timer
delay, fault display system;
8. Screen liquid crystal display of chill water out let and inlet with temperatures setting;
9. Single, double or four compressors combination unit available;
10. Industrially designed, elegant and ergonomic.
specifcactions:
|
Model |
UNIT |
RO-05W |
|
Refrigerating capacity |
kw |
15.91 |
|
Kcal/h |
13091 |
|
|
Compressor |
Input power(kw) |
5.2 |
|
Rated power(Hp) |
6 |
|
|
Evaporator |
Type |
pipe coil evaporator |
|
Pipe diameter(inch) |
1" |
|
|
Refrigerant |
Type |
R407 / R134A |
|
filling Quantity(kg) |
2.5 |
|
|
Cooling flow(m³/h) |
2.6 |
|
|
Water cooled condenser |
Type |
shell condenser |
|
Pipe diameter(inch) |
1" |
|
|
Water tank capacity(L) |
70 |
|
|
Pump |
power(HP) |
0.75 |
|
flow(L/min) |
60 |
|
|
Safety protector |
high and low pressure protection, overload protection, over temperature protection ,phase sequence protection,etc. |
|
|
Dimension(mm) |
860*540*930 |
|
|
Operating Weight(kg) |
150 |
|
