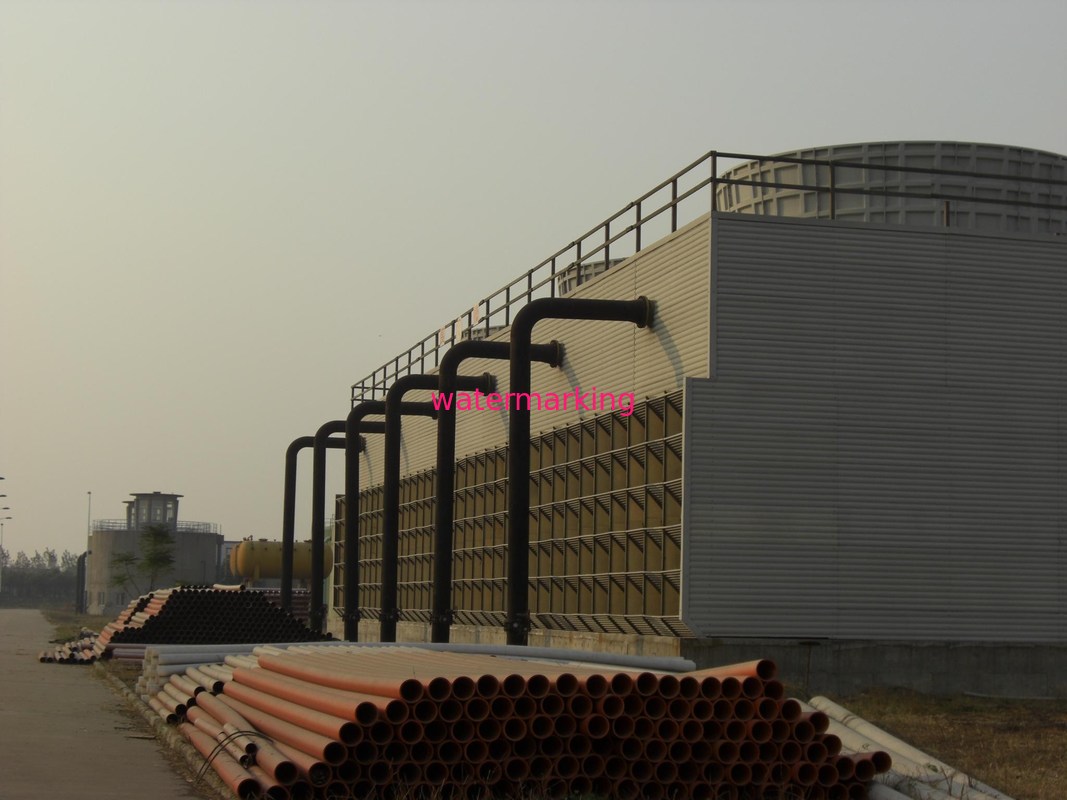

Industrial Square Counter-flow Cooling Tower

Industrial Square Counter-flow Cooling Tower

Product Details:

Place of Origin: China
Brand Name: HOHD
Certification: ISO
Model Number: HOHD

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: According to customer’s requirment
Delivery Time: 7-15days
Payment Terms: L/C T/T,Paypal
Supply Ability: 100 Set/Sets per Week
Get Latest Price Mail Us
Features: Low Noise Cooling Tower
Flow Direction: Counterflow Cooling Tower
Ventilation: Mechanical Draft Cooling Tower
Contact Method: Open Cooling Tower, Wet Cooling Tower
Applications: Chemical, Industrial Cooling Tower, Metallurgy
Material: Steel Cooling Tower
Shape: Square Cooling Tower
Model: CNTS
High Light:

Industrial Cooling Tower

,

induced draft cooling tower

Product Description



Industrial Square Counter-flow Cooling Tower with 8000 mm Fan Diameter





Quick Detail:



  • Non-metalizing of the components
  • Streamlining of air-flow field
  • Low energy-consumption of operation
  • Super low loss of drift
  • High-qualified draught device





Specifications:



Model

Waterflow per cell

(m3/h)

Dimension

Mechnical equipment

L(mm)

W(mm)

H(mm)

Fan Dia.

(mm)

Airflow(m3/h)

Motor(KW)

CNTS-3000

3000

14000

14000

10200

8000

1840000

110

Design condition:

  1. The inlet temp. and outlet. Temp. is 43℃ and 33 ℃;
  2. The WBT is 28℃;
  3. SS is less than 50 ppm.





Description:



CNTS serial counter flow cooling tower applies the full steel structure with FRP enclosure casing, which structure not only greatly decrease weight of tower, but also looks beautiful.

The rigid truss system is used for the tower’s body of FRP cooling tower with steel structure. The connections between all parts are galvanized bolts. The steel pipe with larger turning radius is used as bellied rod to form the truss between beam and column. According to section junctions, the number may be added or reduced. So that it makes the structure of tower’s body not only have better whole rigidity but also the stress distribution have been changed. It is reasonable better for the structure to withstand force. The structure has the function to withstand forces come from all directions, and concentrates load, non-symmetric force and dynamic load caused by earthquake etc. it is very superior to reduce the vibration of cooling tower.





Applications:



CNTS serial cooling tower with ascendant performance and good quality have been widely used in the circulating water system in such fields as Air-conditioning, Electric, Chemical, Metallurgy.





More Detail:



CNTS serial square counter flow cooling tower with steel structure is a advanced kind of cooling tower with perfect technology and reliable performance. The cooling tower has passed the inspection and test for the running tower and all kind of performance data have hit or exceed the national standard value stipulated in GB7190-2008 “Cooling tower of Plastic with enhanced glass fiber”.
