IP44 / IP54 Commercial Electric Water Pumps for clean water / non - aggressive liquid

Basic Information
Place of Origin: Ningbo, China
Brand Name: JINTAI PUMP
Certification: CE
Model Number: SCM
Minimum Order Quantity: 50 set
Packaging Details: WOODEN CASE
Delivery Time: 15DAYS FOR BULK ORDER, 3 DAYS FOR SAMPLE
Payment Terms: 100% T/T, Western Union
Supply Ability: 5000PCS PER WEEK
Detail Information
High Light:

Stainless Steel Centrifugal Pump

,

Water Injection Pump


Product Description

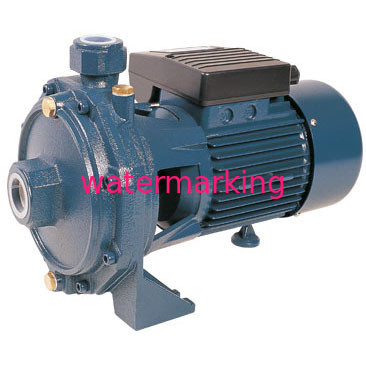

IP44 / IP54 Commercial Electric Water Pumps for clean water / non - aggressive liquid





Max ambient temperature up to 40℃
Max fluid temperature up to 80℃
Max pressure up to 10 bar

Pump Body: cast iron
Motor Housing: aluminum/cast iron
Shaft: 45#steel /stainless steel
Impeller: brass
Motor: closed, externally ventilated
Insulation Class: B/F
Protection Class: IP44 /IP54
Duty: continuously rated
Mechanical Seal: ceramic steatite/ metalized carbon



The SCM2 series are with two back-to-back impellers centrifugal pumps, are developed for higher head valve than single impeller pumps and have extremely high outputs. They are suitable for pumping clean water and chemically non-aggressive liquid, reliable, economical and simple to use. They can be used for pressure boosting washing systems, cooling and fire-fighting units , Industrial water supplying, horticultural and agricultural irrigation applications, civil and domestic water transfer schemes, boiler, chiller and refrigeration systems.
Pumps should be installed in a covered area, protected against the weather.





Specifications :



IP44 / IP54 Commercial Electric Water Pumps for clean water / non - aggressive liquid 0
