Product Details:
|
Highlight: | industrial cooling systems,industrial water coolers |
---|

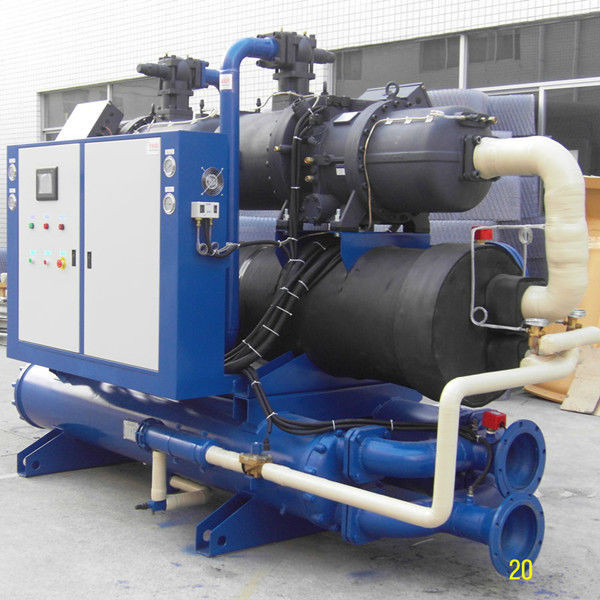

Water-Cooled Industrial Water Chiller With Semi-hermetic Compressor
Quick Detail:
1.Semi-hermetic screw type chiller
2.CE approval&OEM
3.10 years experiences
4.1 year warranty free
5.Automatically adjust the temperature, energy Conservation
6.Stainless steel heat exchange, low noise and long life
Features:
1.compressor __semi-hermetic screw chiller
Employing internationally renowned brands all new imported compressors, with 30%higher efficiency than the original and obtain international quality authentication from Europe and the United States patent IS9001.
2. High efficiency evaporator
High efficiency evaporator and cooling condenser in use, to help save no less than 30% of your power rates.
3. Automatically adjust the temperature, energy Conservation
4.. Equipped with open-type stainless steel water tank, quite easy to clean and maintain.
5. Stainless steel heat exchange, low noise and long life
6. Easy to install and operate
7.. Stable &reliable, fast cooling, high efficiency
8 . 1 years after-sale service
9.Complete with safety protection and error indication system.
Item | Model | RO-340WS | |
Cooling Capacity |
Kcal/h 50HZ/60HZ |
320780 368897 |
|
KW 50HZ/60HZ |
373 429 |
||
Running Current | A | 133 | |
CapacityControl | 0-25%-50%-75%-100% | ||
Power Supply | 3N-380V/415V-50HZ/60HZ | ||
Refrigerant | Type | R22/Customized | |
ControlType | Thermostatic Expansion Valve | ||
Compressor | Type | Semi-Hermetic Screw | |
Motor Power | KW | 79 | |
Evaporator | Type | Shell and Tube | |
FreezeWater Flow | m^3/h | 65 | |
P.D. | Kpa | 45 | |
In/Out pipe size | DN | 100 | |
Condenser | Type | Shell and Tube | |
CoolingWater Flow | m^3/h | 88.3 | |
P.D. | Kpa | 48 | |
In/Out pipe size | DN | 100 | |
Safety Device |
High/LowPressure Switch, Anti-frostProtector, SolubeChock, Overheat Protector,CoilOverheatProtector AutomaticTemperatureSensitiveSwitch,Anti-phaseProtector |
||
Size | L | mm | 3200 |
W | mm | 900 | |
H | mm | 1900 | |
Net Weight | kg | 2000 | |
Operating | kg | 2180 |
Remarks:The cooling capacity is calculated base on the outlet temperature -32C,evaporator temperature -39C,condenser temperature 45C.
Configuration
Compressor |
Fusheng |
|||
Condenser |
RIOU |
|||
Evaporator |
RIOU |
|||
Electric control parts |
LG/Carlo |
|||
Economizer |
Emerson |
|||
Expansion Valve |
Emerson |
|||
Separator |
GuanYa |
|||
Dry Filter |
Alco |
|||
Oil pressure gauge |
RIOU |
|||
Pressure Control |
Heli |
