Air Cooled Screw Water Chiller/CE Certificated Air Cooled Water Chiller

Air Cooled Screw Water Chiller/CE Certificated Air Cooled Water Chiller
Air Cooled Screw Water Chiller/CE Certificated Air Cooled Water Chiller

Large Image :  Air Cooled Screw Water Chiller/CE Certificated Air Cooled Water Chiller

Product Details:
Place of Origin: China air-cooled water chillers
Brand Name: RISINGSUN industry chillers
Certification: CE for China air-cooled water chillers manufacturer
Model Number: RS-215-TIC-10A
Keywords: China Air-cooled chillers Supplier, China Air-cooled water chillers Manufacturer,
Keyword: China industrial chillers OEM factory; China industrial chillers OEM plant
Payment & Shipping Terms:
Minimum Order Quantity: 1 set of air-cooled water chillers
Price: contact us for air-cooled water chiller price
Packaging Details: standard export packing of industry air-cooled water chillers
Delivery Time: 15 days according to air-cooled water chiller production
Payment Terms: West Union, Paypal, T/T, L/C etc
Supply Ability: 500 sets of air-cooled water chillers according to China Manufacturer ability

Air Cooled Screw Water Chiller/CE Certificated Air Cooled Water Chiller

Description

Item No.: RS-215-TIC-10A

 Air Cooled Screw Water Chiller/CE Certificated Air Cooled Water Chiller



Description of the air cooled water chillers,

The air-cooled water chillers use a single closed-loop design for pressurized refrigerant. All models are equipped with compressor and motor overload protection, phase shortage and reversal alarms, anti-freeze thermostat, pressure gauges etc. They feature excellent performance and a long lifespan. The series of working flow is based on the basic principle of heat exchange. It is applicable to the industry that requires flow of precisely controlled chilled water, and considered as indispensable equipment for modern industry.

Air Cooled Screw Water Chiller/CE Certificated Air Cooled Water Chiller 0



Features of the air cooled water chillers,

Cooling capacity from 7℃ to 35℃.

Stainless insulated water tank and anti-freeze thermostat.

R22 refrigerant used as standard for efficient cooling.

Compressor and pump overload relays.

Italian made temperature controller maintains an accuracy of±1℃.

Compact design, easy to operate and maintain.

Low pressure pumps are standard configurations, while middle or high pressure pumps are optionally available.

Level meter of water tank is available as an option.

All adopt Copeland compressors.

TIC-A adopts tube-fin condenser design without any need of cooling water for excellent heat transfer and rapid cooling.

Upon request, it can be built to comply with worldwide electrical safety standards (For example, CE,UL,CSA,JIS etc.).

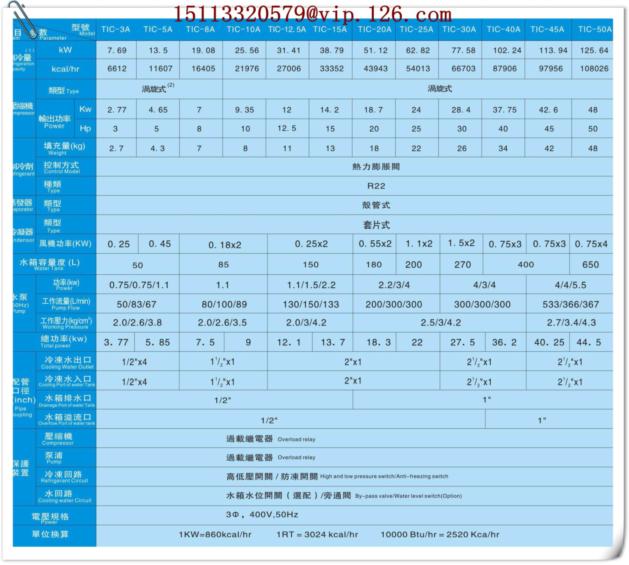

Specification of the air-cooled water chillers,

Air Cooled Screw Water Chiller/CE Certificated Air Cooled Water Chiller 1

Note,

1) Refrigeration capacity is tested under the condition that cold water outlet temperature is at 12℃ and ambient

2)      A piston type compressor is used when power supply is 3⊙, 230V.( TIC-3A-TIC-5A ).

3)      Environment-friendly R407 C refrigerant is optional.( Model denotes ''U”, such as TIC-5A-U ).

4)      This pump is   used as standard either for domestic or Southeast Asia; medium ( Model denotes "P", such as TIC-5A-P ) or high pressure pump ( Model denotes “HP", such as TIC-5A-HP )are optional for installation on customer's demands.

5)      Air-cooled chillers are best to be used in the environment with ambient temperature under 35℃.

Demands on special voltage of power supply could be satisfied.



Structure of the air-cooled water chillers,

   Air Cooled Screw Water Chiller/CE Certificated Air Cooled Water Chiller 2

Air Cooled Screw Water Chiller/CE Certificated Air Cooled Water Chiller 3

1),Stainless iron water tank for storage of circulation water.

2), Heavy duty 3-phase pump ensures no blockages and high torque.

3),High/low system pressure gauges.

4),Main power switch.

5),Pump pressure gauge.

6),Scroll/ piston type compressor(s) for super high efficiency and low noise.

7), Refrigerant tank is fixed to make full use of the condenser cooling fin.

8),Expansion valve for accurate adjustment of R22 refrigerant.

9),Tube - fin condenser features quick heat transfer and heat radiation.

10),Tube-in-shell evaporator ensures efficient cooling.

11), Powder coated frame.



Working principle of the air-cooled water chillers,

Air Cooled Screw Water Chiller/CE Certificated Air Cooled Water Chiller 4

TIC-A air-cooled water chillers include four main components, such as compressor, condenser, thermostatic expansion valve and evaporator. The system adopts a single closed-loop design for refrigeration system. Refrigerant is alternatively changed from gaseous to liquid state to absorb or release heat thus a cooling effect is achieved.

When the machine is started, compressor starts working. Refrigerant is compressed into high pressure and high temperature gas in the process from A to B. In the process From B to C and D, this high pressure and high temperature gas is cooled when it is passing through the condenser and changed into liguid. Heat is taken away by the cooling air. In the process from D to E, the pressure of liquid refrigerant is reduced by expansion valve and a part of the refrigerant is changed from liquid to gaseous state. In the process from E to A, refrigerant absorbs the heat of process water in the evaporator and returns back to the compressor. This heat exchange process repeats until process water is cooled down to required temperature.



Size of the air-cooled water chillers,

Air Cooled Screw Water Chiller/CE Certificated Air Cooled Water Chiller 5

Air Cooled Screw Water Chiller/CE Certificated Air Cooled Water Chiller 6



Model Selection Guide of the air-cooled water chillers,

Molding machine

Clamping

Force (T)

Forming

ability

Kg/hr

Model No.

Model No.

≤250

≤25

TIC-3W

TIC-3A

≤350

≤35

TIC 5W

TIC 5A

≤450

≤45

≤550

≤55

TIC-8W

TIC-8A

≤650

≤65

≤850

≤85

TIC-10W

TIC-1 OA

≤1000

≤100

TIC-12. 5W

TIC-12. 5A

≤1300

≤130

≤1500

≤150

TIC-15W

TIC-15A

≤1800

≤180

≤2200

≤220

TIC-20W

TIC-20A

≤2500

≤250

≤3000

≤300

TIC-25W

TIC-25A

≤4000

≤400

TIC-30W

TIC-30A

≤5000

≤500

TIC-40W

TIC-40A

≤6000

≤600

TIC-45W

TIC-45A

≤7000

≤700

TIC-50W

TIC-50A





Machine color--- blue or white, or others;



Machine brand--- factory brand, OEM brand or no brand;





We do OEM!



We do B2B, B2C!



We do Paypal, West Union, T/T and L/C!
