Product Details:
|
| Product: | Cold Runner Plastic Injection Mold | Material: | Steel |
|---|---|---|---|
| Mold Base: | LKM , HASCO , DME , MISUMI | Runner Type: | Cold Runner |
| Injection Machine: | 90 , 120 ,180 ,270 T | Mold Size: | Custom |
| Parts: | Household , Construction , Production , Medical Facility | Mold Life: | 500000 - 1000000 Shot |
| Design Software: | Solidworks,UG,AutoCAD | Design Ability: | Free Design Service |
| Lead Time: | Prompt | ||
| High Light: | aluminum injection mold,Household Molds |
||

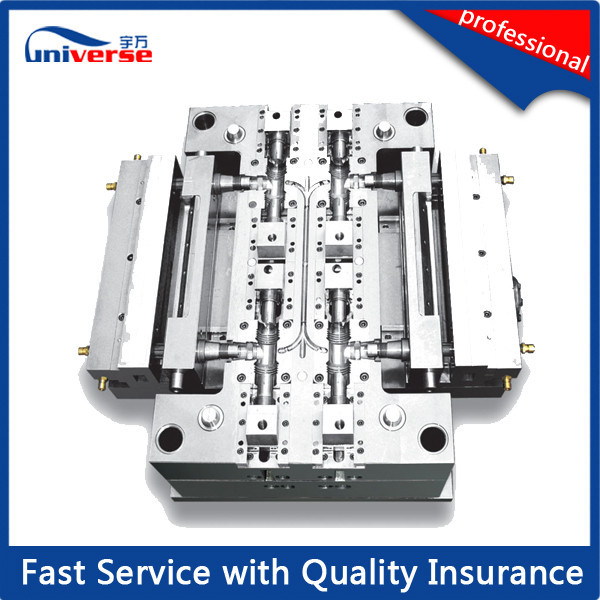

EDM Multi - cavity Cold Runner Mold for Household Products
Specifications:
|
Standard of Cold Runner Mold |
HASCO,DME,MEUSBURGER,JIS,CHINA LKM Standard |
|
Mould base |
LKM&Hasco&DME standard (A,B plate 1730,2311,2312,P20 ) |
|
Material main core and cavity insert |
DIN2312,2738,2344,718,S136,8407,NAK80,SKD61,H13 |
|
Hardness of steel |
46~56HRC |
|
Material for Slider ,Lifter and all sub insert use |
1.2767 HRC |
|
Cavity |
Single-cavity ,Multi-cavity |
|
A surface request: |
EDM & High Polish |
|
Gate |
Cold runner,Yudo/DME/HASCO/Synventive Hot runner |
|
Maximum mould size |
1500*1500 mm |
|
Mould life time |
500000~+1,000,000 shots |
|
Quality |
ISO9001-2008 certification |
|
Product material |
PA,PA6/6+GF,ABS,POM,PC,PP,PET,TPE,PVC,HDPE etc |
|
Lead time |
4~7 Weeks |
|
Package |
Wooden/Plywood case for tool ,PE bags add export carton for parts |
|
Payment terms |
T/T |
|
Trade terms |
FOB Guangzhou / Shen Zhen , EXW ,CIF |
|
Export country |
Europe countries,USA,Mexico,Australia ,Middle-east ,Asia etc |
|
Value-added service |
Polish,texture,painting,screen printing,turnkey project |
Production Process:
| 1. Quotation | According to 3D drawing or samples for quotation |
| 2. Negotiations | Including the price of moulds,moulds size,material for cores &cavities |
| 3. Purchasing Order | After the customer confirming the mould design and quotation |
| 4. Making mold | Confirm drawing, mold details agree with the customer,start production |
| 5. Production Schedule | Every week we will feedback the the customer a mold progress(picture) |
| 6. Sample shoot | We provide the moulds test samples for confirmation(about 10-15 pcs) |
| 7. Package | wooden case for moulds,cartons for parts or products,or custom |
| 8. Delivery | Deliver goods by air or by sea |
SGS Certification:
Advantages:
1. Mold design is subject to customer's requirement.
2. Injection molding machine specification jof certain plastic,etc. Our product include a variety of vacuum cleaners, and plastic components . These products are widely available to world-class large companies.We hve won a high repulation among clients. Our company provides processing or researching and manufacturing services. We are very interested in the development of new products to meet market demands.
3. Specification about flow, Material,radian and so on, we can fit in all you want.
Our Company:
Dongguan Universe Plastic provides high quality, high precision molds capable of producing over 50,000 pieces. Multiple cavity, complex molds are designed to fit customer requirements. Material selection is extremely important depending on the application. Universe Plastic's engineers will determine which alloy or combinations of alloys best fills the requirements, while maintaining low costs. Professional Software engineers help clients with SolidWorks designs of their molds to ensure structural integrity, correctness, and longevity of their design. Utilizing a modern, fully equipped faciltiy, holding to the highest standards of precision and safety. all aspects of Mold Tooling are performed, which results in short lead times with no loss of quality or performance.
