Product Details:
|
| Cooling Capacity(KW): | 379-675 | Input Power(KW): | 58.1*2-99.9*2 |
|---|---|---|---|
| Power Supply: | 380v-50hz-3ph | Refrigeration: | R22 |
| Chilled Water Flow(m³/h）: | 65.1-116.0 | Condenser: | Ripple Aluminum Fins Around Copper Pipe |
| Certificate: | CE | Mount Type: | Free Standing |
| High Light: | Air Cooling Units,Modular Air Cooled Chiller |
||

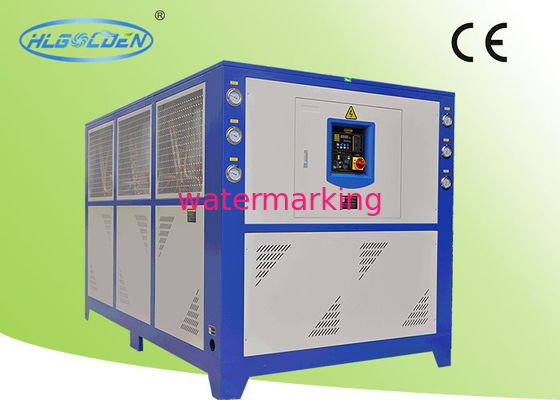

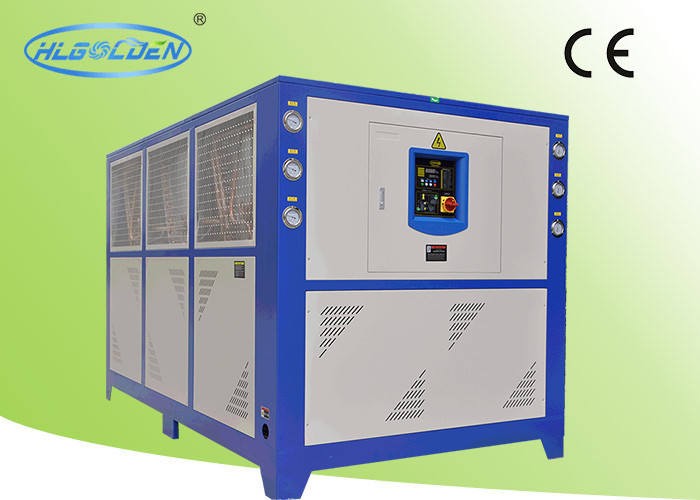

Commercial Air Cool Air Conditioner Chiller For Cooling , Low temperature
|
Model HLWA～ |
380DH |
420DH |
490DH |
520DH |
560DH |
610DH |
680DH |
||
|
Rated Cooling Capacity |
X 1000Kcal/h |
325.7 |
357.4 |
421.2 |
445.0 |
486.8 |
527.1 |
580.2 |
|
|
KW |
379 |
416 |
490 |
518 |
566 |
613 |
675 |
||
|
Comp. lnput Power×Qty (KW) |
58.1×2 |
63.2×2 |
71.2×2 |
74.9×2 |
82.4×2 |
89.9×2 |
99.9×2 |
||
|
Refrigerant |
R22 |
||||||||
|
Power Supply |
380V/ 3ph/ 50Hz |
||||||||
|
Safety Protection |
Phase reversion protection, Phase lack protection, Overload current protection, Low & High pressure protection, Low temp. protection, Water flow protection. |
||||||||
|
Number of Refrigeration Circuit |
2 |
||||||||
|
Capacity Control (%) |
0, 25, 37.5, 50, 62.5, 75, 87.5, 100 |
||||||||
|
Refrigerant Charge (Kg) |
104 |
112 |
136 |
142 |
156 |
168 |
186 |
||
|
Condenser |
Ripple Aluminum Fins Around Copper Pipe |
||||||||
|
|
Dia.of Pipe (inch) |
5" |
5" |
3"×2 |
3"×2 |
4"×2 |
4"×2 |
4"×2 |
|
|
Water Side Max Pressure (MPa) |
1 |
||||||||
|
Chilled Water Flow(m3/h) |
65.1 |
71.5 |
84.2 |
89.0 |
97.4 |
105.4 |
116.0 |
||
|
Water Pressure drop (kPa) |
42 |
54 |
44 |
52 |
54 |
55 |
65 |
||
|
|
Air Flow×1000m3/h |
172.8 |
172.8 |
230.4 |
230.4 |
230.4 |
321.6 |
321.6 |
|
|
Power×Qty (KW) |
1.2×12 |
1.2×12 |
1.2×16 |
1.2×16 |
1.2×16 |
2.0×16 |
2.0×16 |
||
|
Running Noise dB(A) |
72 |
72 |
72 |
72 |
75 |
75 |
75 |
||
|
Total Weight (Kg) |
4430 |
4550 |
5340 |
5420 |
5500 |
5860 |
6320 |
||
|
Running Weight(Kg) |
4750 |
4970 |
5800 |
5950 |
6040 |
6480 |
6900 |
||
|
Heat Recovery |
||||||||||||||
|
Refrigerant Charge (Kg) |
110 |
118 |
142 |
148 |
160 |
174 |
192 |
|||||||
|
Heat Reclaimed Volume (kw) |
X 1000Kcal/h |
97.7 |
107.2 |
126.3 |
133.5 |
146.1 |
158.1 |
174.1 |
||||||
|
KW |
114 |
125 |
147 |
155 |
170 |
184 |
202 |
|||||||
|
Heat Recovery |
Dia.of Pipe (inch) |
2-1/2" |
2-1/2" |
2"×2 |
2"×2 |
2"×2 |
2"×2 |
2"×2 |
||||||
|
Water Side Max Pressure (MPa) |
1 |
|||||||||||||
|
Reclaimed Water Flow (m3/h) |
19.5 |
21.4 |
25.3 |
26.7 |
29.2 |
31.6 |
34.8 |
|||||||
|
Water Pressure drop (kPa) |
26 |
26 |
27 |
27 |
30 |
30 |
34 |
|||||||
|
Total Weight (Kg) |
4790 |
4910 |
5920 |
6040 |
6260 |
6480 |
6980 |
|||||||
|
Running Weight(Kg) |
5280 |
5440 |
6500 |
6650 |
6760 |
7240 |
7720 |
|||||||
|
1. Rated Cooling Capacity Based on: DB Temperature 35℃/WB Temperature 24℃ |
|
Chilled water inlet/outlet temp. 12℃/7℃, Fouling factor: 0.088㎡.°C/KW. |
|
2. Chilled Water Range: 5～20℃; Lowest Ambient Temperature:15℃～43℃; |
|
3. Heat recovery unit water in/out temperature: 50℃/55℃; |
|
4.Changes of Specification for lmprovement May Be made without Notice. |
Feature :
Air cooled water chiller and heat pump unit is a new generation of modular unit developed by Vicot. This
unit is energy saving and convenient in use, which has the function of reverse cycle automatic defrosting,
double steps automatic anti-freezing, built-in self-diagnosable system, and is controlled by microcomputer.
Applicable to hotels, villas, hospitals, cinemas, stadiums, recreations, office blocks, factories and so on.
It can also provide chilled water or moderate hot water for industrial purpose.
If one compressor is failed, other compressors can operate normally, the impact to user is small.
Working without water-cooling tower , it provides easier installation and higher mobility . Independent cooling system . It's a
wonderful choice for places lacking of water or those water-cooling tower is not applicable .
Modular design : flexible combination, easily to expanding for a large cooling capacity .
Semi-hermetic screw compressor has operating steady, low noise, and less vibration features.
The unit is suitable for installing in out space such as roof, floor and porch, left off the boiler room and the
special room, decreased the investment of building project. And no need of cooling tower and cooling water
pump, this unit saves water greatly. And the unit is easy to install, manage and maintain.
Golden refrigeration equipment CO.,LTD air source heat pump series:
1 . Air source water chiller ( cooling only )
2 . Air source heat pump ( cooling and heating or heating )
3 . Air source water chiller / heat pump ( within heat recovery )
