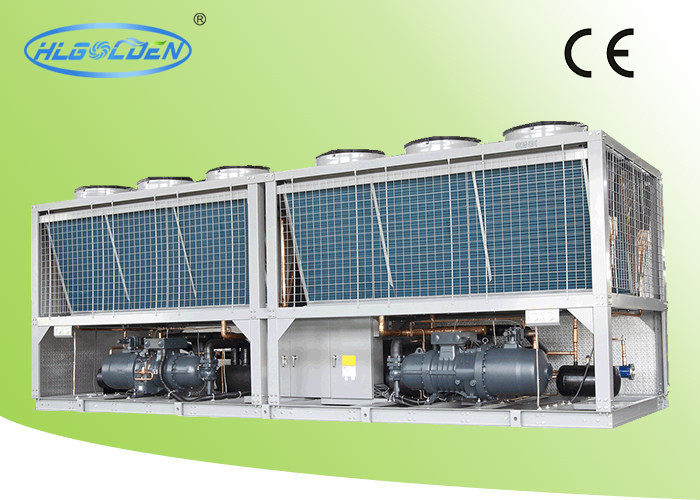

Residential Modular Air Cooled Chiller Most Efficient Air Source Heat Pump

Model     HLWH～

100SM

150SM

195SM

230SM

270SM

290SM

320SM

Rated Cooling
Capacity

Cooling
Capacity (KW)

101

147

196

232

268

293

316

Comp.
 Input Power (KW)

34.6

48.2

63.8

70.5

82.4

90.2

98.9

Rated Heating Capacity

 Heating
 Capacity (KW)

111

159

212

245

284

311

337

Comp.
 Input Power (KW)

34.1

47.4

62.8

69.2

80.8

88.4

97.2

 Refrigerant

R407C

Power Supply

3φ-380V/50HZ

Safety Protection

Phase reversion protection,
Phase lack protection, Overload
current protection,
Discharge air temp.  protection,
Low & High pressure protection,
Low temp.  protection,
Water flow protection.

 Number of
Refrigeration Circuit

1

Capacity Control (%)

0, 50, 75, 100

 Refrigerant Charge (Kg)

30

42

56

68

78

84

93

Air Cooled Heat Exchanger

Ripple Aluminum Fins Around Copper Pipe

Water Cooled Heat Exchanger

Dia.of Pipe (inch)

2-1/2"

3"

3"

3"

4"

4"

4"

Water Side
Max Pressure  (MPa)

1

 Chilled
 Water Flow(m3/h)

17.4

25.3

33.7

39.9

46.1

50.4

54.3

 Water Pressure
 Drop (kPa)

28

33

48

55

61

64

66

Flow of Hot
Water(m3/h)

19.1

27.3

36.5

42.1

48.8

53.5

58.0

Axial Fan

Air Flow×1000m3/h

56.8

80.4

113.6

115.2

115.2

160.8

160.8

Power×Qty (KW)

1.2×4

2.0×4

1.2×8

1.2×8

1.2×8

2.0×8

2.0×8

Running Noise dB(A)

75

75

75

75

75

75

75

Total Weight (Kg)

1550

1960

2940

3120

3300

3480

3660

Running Weight(Kg)

1660

2140

3160

3340

3550

3730

3980
