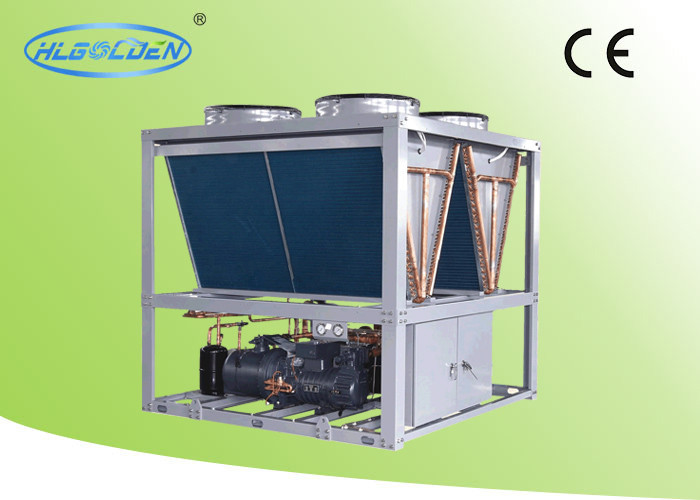

Air To Water Chiller 490KW

Air To Water Chiller 490KW
Air To Water Chiller 490KW Air To Water Chiller 490KW Air To Water Chiller 490KW Air To Water Chiller 490KW

Large Image :  Air To Water Chiller 490KW

Product Details:
Place of Origin: Guangdong
Brand Name: GOLDEN
Certification: CE
Model Number: HLWA-520DM
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 30 working days
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 300 units per month

Air To Water Chiller 490KW

Description
Application: Commercial Air Conditioner Or Industrial Cooling Cooling Capacity: 337 KW
Refrigerant: R407C, R134A Power Supply: 380V-3PH-50,60HZ
Evaporator: Shell And Tube Type Heat Recover: Optional
Certificate: CE Compressor: Hanbell Screw Compressor
Compressor Quantity: Single Or Double
High Light:

Rotary Screw Chiller

,

Air Cooled Split Unit


Plate Fins Type Air Cooled Screw Chiller high COP Air To Water Chiller 490KW


Feature:

HIGH EFFICIENCY
High levels of energy efficiency, providing reduced energy consumptions, lower running costs and a quicker

 return on the investment

ADAPTABILITY
Adaptability at the building’s cooling request thanks to the continuous capacity regulation, assured by

sophisticated control’s logic.

EXTENSIVE RANGE OF OPERATION
Extensive range of operation with external air temperature up to 46°C (115°F) at full load.


FLEXIBILITY
Flexibility in applications thanks to the many available configurations and accessories. These include: - NR

noise reduction kit to lower the sound power of 6 dB(A) - HT high temperature kit for operation at full load with
 outside air temperatures above 46°C (115°F) - partial heat recovery for hot water production up to 60°C
 (140°F) - low or high pressure hydronlic kit (10 or 20 [mH2O] / 394.7 or 787.4 [inH2O] available pressure
 head) -

LEED RELEVANT PRODUCT
These units are compliant with the performance standard contained in the protocol of sustainability LEED



2. Specification:

   Model     HLWA~

380DM

420DM

480DM

520DM

560DM

620DM

680DM


Rated Cooling Capacity

X 1000Kcal/h

307.8

336.2

399.0

421.3

460.9

503.9

543.4

KW

358

391

464

490

536

586

632

Comp. lnput Power×Qty (KW)

58.2×2

63.8×2

70.5×2

74.1×2

82.4×2

90.2×2

98.9×2

Refrigerant

R407C

Power Supply

380V/ 3ph/ 50Hz

 Number of Refrigeration Circuit

2

Capacity Control (%)

0, 25, 37.5, 50, 62.5, 75, 87.5, 100

Refrigerant Charge (Kg)

104

112

136

142

156

168

186

 Condenser

Ripple Aluminum Fins Around Copper Pipe


Evaporator

 Dia.of Pipe (inch)

5"

5"

3"×2

3"×2

4"×2

4"×2

4"×2


Water Side Max Pressure  (MPa)

1


Chilled  Water Flow(m3/h)

61.6

67.2

79.8

84.3

92.2

100.8

108.7

 Water Pressure drop (kPa)

42

54

44

52

54

55

65


Axial Fan


Air Flow×1000m3/h

172.8

172.8

230.4

230.4

230.4

321.6

321.6

Power×Qty (KW)

1.2×12

1.2×12

1.2×16

1.2×16

1.2×16

2.0×16

2.0×16

 Running Noise dB(A)

72

72

72

72

75

75

75

 Total Weight (Kg)

4430

4550

5340

5420

5500

5860

6320

 Running Weight(Kg)

4750

4970

5800

5950

6040

6480

6900


3. Installation Drawing:

Air To Water Chiller 490KW 0
4. Real Photo:
Air To Water Chiller 490KW 1Air To Water Chiller 490KW 2
