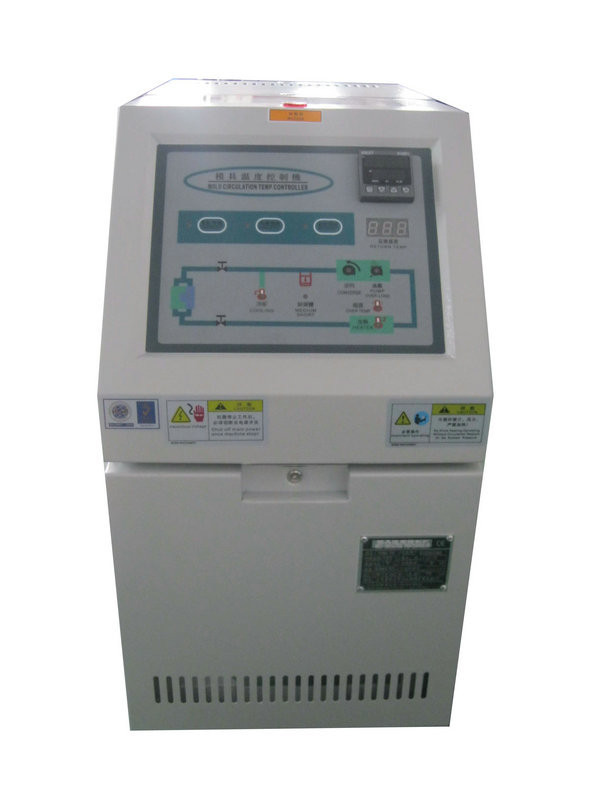

Large Image :  Energy-Saving Hot Water Temperature Control Unit , Portable Water Chiller Units

SHENZHEN AODE MACHINERY CO.,LTD

Verified Supplier

China

Business type: Manufacturer, Exporter, Seller

Telephone : 86-0755-33232001-829

No.37,Dayang Industrial Area, Xingang East Road, Lougang Boulevard, Songgang Town, Bao'an District, Shenzhen

Product Details:

Place of Origin: China
Brand Name: Aode
Certification: ISO,CE
Model Number: AOS-10A

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Packaging Details: Protective/air bubble film, Wooden case. As client’s requirement.
Delivery Time: Within 20days after receiving deposit
Payment Terms: 30% T/T in advance, 70% balance before we delivery
Supply Ability: 500pcs/month
Detailed Product Description
Product Name: Oil Temperature Control Unit Brand Name: AODE
Application: Plastic Injection Molding, Pringting, Chemical Certification: CE, ISO
Cooling Method: Indirect Cooling Heat Transfer Medium: Oil
Power Supply: AC3∮380V Temp Control Accuracy: PID±1℃
Temperature Range: 25℃-180℃



Energy-Saving Hot Water Temperature Control Unit , Portable Water Chiller Units





Quick Detail:



1. Temp. Control accuracy:PID±1℃

2. Temp. Control range: Inlet water temperature+25℃-180℃

3. Certification:CE & ISO

4. Controller:microcomputer

5. Heating capacity: 9KW

6. Maximum power consumption: 10KW

7. Alarm function:Excess temperature, open phase, oil starvation, overloading, reverse turn





Description:



  • Explosion-proof equipment(optional)
  • Air blowing and return water function(optional)
  • Thermometer for return water
  • Automatic air-exhausting function after startup
  • Switchover of heating power
  • Instant cooling shut-down function(optional)
  • RS485 communication function for automated management(optional)
  • BY-PASS pressure release loop for hot water
  • Customizable multi-point temperature control unit
  • Customizable horsepower and heating power of water pump
  • Brands OMRON, FUJI, TE, LG, MOELLER, ABB, and WEST for electric appliances
  • Range of temperature control: +15℃-180℃ for incoming water
  • Stainless steel integrated pipelines for less pipe resistance and rust
  • Control mode: imported microcomputer or PLC(optional)
  • Perfect safety protection, fault display, easy repair and maintenance even free of professionals





Specifications:



ITEM

UNIT

AOS-10A

Temp control range

Inlet water temperature +25℃-180℃

Temp control accuracy

PID±1℃

Power supply



AC3∮380V 50HZ +E(5M)

Heat transfer medium



Conduction oil

Cooling method



Indirect Cooling

Heating capacity

KW

9

Max. power consumption

KW

10

Horsepower of pump

hp

1

Working flow of pump

L/min

                   30

Working pressure of pump

Kg/cm2

1.7

Oil reserve

liter

8

Alarm function



excess temperature/Open phase/oil starvation/ overloading/reverse turn

Cooling water pipe

inch

1/2

Circulating water pipe

inch

3/8×4

Size(L×W×H)

mm

630×325×745





Competitive Advantage:



1. Strict quality control system

2. Three factories in shenzhen, tianjin and suzhou. More than 60 offices in China.

3. Our product is environmental and energy-saving

4. We have the production certification organic heat transfer material heater

5. High density heat insulation cotton and aluminum foil

6. Electric appliances brands:OMRON, JUJI, TE.LG, MOLLER, ABB and WEST

7. Imported microcomputer or PLC

8. Customization thick copper pipe 1.0-1.2





Applications:



Chemical Industry

Hot Rolling Machine: Calender Rolls, Wood Presses, Laminating Presses,Molding Presses, Rubber Presses, Jacketed Vessels, Reactors, Heat Exchangers, Mixers, Printing Machines, Asphalt, Vulcanizing Presses.
Die casting,plastic  Injection molding, light guide plates, connectors, Chemical engineering, Shoe materials, Pringting and dyeing, Drying and banburying.




Energy-Saving Hot Water Temperature Control Unit , Portable Water Chiller Units



Energy-Saving Hot Water Temperature Control Unit , Portable Water Chiller Units



Energy-Saving Hot Water Temperature Control Unit , Portable Water Chiller Units

Energy-Saving Hot Water Temperature Control Unit , Portable Water Chiller Units





Nowadays, Aode Machinery Co.,ltd continue to uphold the purpose of international standards designs and high quality products, applying ourselves to providing high standard products and whole-journey nanny service. Our products are widely applied in plastic injection molding, light guide plates, connectors, chemical engineering, compression casting, reaction kettles, rubber tires, calendaring, shoe materials, printing and dyeing, drying and banburying and tec. And widely sold to Japan, America, Italy, Brazil, Southeast Asia, Africa and etc. The brand recognition from the market is sufficient to prove that our temp. control system can replace the imported similar products. Belows are our honor clients.
