Heat Exchanger Air Cooled Water Chiller

Basic Information
Place of Origin: China
Brand Name: HOHD
Certification: ISO
Model Number: HOHD
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: According to customer’s requirment
Delivery Time: 7-15days
Payment Terms: L/C T/T,Paypal
Supply Ability: 100 Set/Sets per Week
Detail Information
High Light:

water cooled chillers

,

industrial water chiller units


Product Description

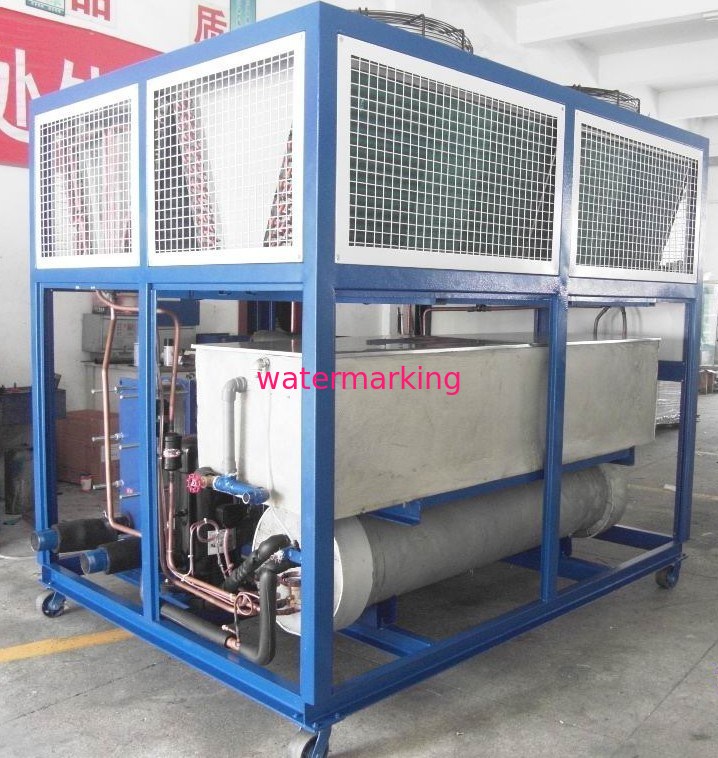

3n / 380v / 50hz 108kw Air Cooled Scroll Chiller Cooling Water Chiller With Heat Exchanger For Industry
RO-40A

RIOU series industrial water chillers are widely used in industries, including plastic & rubber machinery, electroplating, pharmacy, chemical engineering, ultrasonic cooling and printing. They can precisely control temperature in any process requiring water cooling, and greatly improve the efficiency and quality of production.RIOU industrial water chiller with simple operation, reasonable design, high quality and hundreds of specifications, is an indispensable companion of modern industrial production.

1.Imported American and Japanese brand new compressors featuring built-in safety protection, low noise, low electricity consumption, increased reliability & longer life.
2.LG/CARLO electric components ensure the stable operation and long service life.
3.Imported Taiwan mini brand water pump, large flow, high efficiency and long lasting service life.
4.Imported precise digital display temperature controller is provided to precisely control water temperature with variation of ±1℃.Temperature can be set in the range from 5℃ to 50℃.
5.Fully stainless steel thick water-tank-type evaporator is integrated with the built-in automatic water replenishing device for quick and convenient cleaning and maintenance.
6.The condenser of the air cooled chiller unit is made of aluminum fins and row column tubes to guarantee the high efficiency of heat exchange.
7.Static plastic spraying enclosure with aesthetic design, elegant appearance, convenient operation and maintenance.





Name

Air Cooled Scroll Chiller

Model

RO-40A

Cooling Capacity (kw/h)

108

Pump Power(kw)

3.75

The Cold Water Flow(m3/h)

19.53

The Cooling Air Volume( m3/h)

40000

Refrigerant

R22

The Water Tank(m3)

0.61

Temp Control Scope(°C)

5- Normal atmospheric temperature

Compressor Input Power(KW)

7.5*4

The water pipe size of receipts and payment(G")

    3"

Power Supply

3N/380V/50HZ

Dimension(L*W*H)mm

2800*1800*2055

Weight(KG)

1560

Configuration:

1.Compressor:Japan Sanyo

2.Taiwan Punp electronic board of micro computer

3.Pump: Taiwan Mini

Protective Device:

1.Phase protector

2.Fan overload protector

3.High/low voltage protector

4.Water level protector

5.Anti-freeze protector






To give you our best offer one time,please indicate:
1.What is the cooling capacity you need?
2.Air cooled or water cooled?As you see,water cooled need a separated cooling tower .
3.What is the outlet water/glycol/seawater temp you need?
4.What is the power supply?
5.Do you need water pump,water tank together?
6.Is there any special requirement for the refrigerant?R22,R134A,R407C,R404A or other?


Welcome to contact  vivian@rozl.com!
